• Almost all buildings in the U.S. have circuit breakers. Fuses are only in very old buildings.

• Circuit breakers work faster and protect better than fuses.

• New buildings must have circuit breakers because of safety rules.

Key Takeaways

• Circuit breakers keep homes and businesses safe. They stop electricity when there are problems like too much power, short circuits, or ground faults. You can turn circuit breakers back on after they trip. This makes them quicker and easier to use than fuses. Fuses have to be replaced when they blow. There are different kinds of circuit breakers. Some are standard, GFCI, or AFCI. Each one protects against certain dangers like shocks or fires. Picking the right circuit breaker is important. You need to match its size, type, and features to your system. You also need to follow safety rules. Checking and testing your circuit breakers often is a good idea. This helps keep your electrical system safe. It also helps you avoid expensive repairs.

Circuit Breaker Function

Safety Role

A circuit breaker helps keep your home or business safe. It protects you from electrical problems. This device guards against three main dangers: overloads, shorts, and ground faults. If too many things use power on one circuit, it causes an overload. The wires get hot and could start a fire. The circuit breaker notices this and shuts off the power.

A short circuit happens when a hot wire touches another wire or metal. This makes a lot of electricity flow very fast. Sparks and heat can show up right away. The circuit breaker finds this and turns off the power quickly. This is called short circuit protection. Ground faults are also risky, especially near water. If electricity leaves its path and goes through a person or water, the circuit breaker trips to stop shocks or fires.

Modern circuit breakers have special types like GFCIs and AFCIs. GFCIs protect you from ground faults. AFCIs stop fires from electrical arcs in broken wires. These features make circuit breakers safer than old systems. You can reset a circuit breaker after it trips. You must replace a fuse if it breaks. Resetting is faster and keeps your system safe.

Tip: If a circuit breaker pops, check for too many things plugged in or broken devices before resetting. Call an expert if it keeps happening.

How It Works

You might wonder how circuit breakers work in your panel. Each circuit breaker has parts that sense problems and act fast. Here is a simple table that shows the main parts and what they do:

If you plug in too many things, the bimetallic strip gets hot. It bends and makes the trip mechanism work. This gives you overload protection. If a short circuit happens, the electromagnet acts very fast. It pulls a lever and opens the contacts, stopping the current. This system lets the circuit breaker handle both slow and fast problems.

Circuit breakers can trip by themselves when they sense danger. You can also turn them off by hand for repairs. After fixing the problem, you reset the breaker by flipping the switch. This is much faster than changing a fuse. Fuses can act faster sometimes, but you waste time finding and putting in a new one. Circuit breakers save time and keep your system working well.

You should know that circuit breaker limits are important. Each breaker has a set amount of current it allows. If the current goes over this limit, the breaker trips. This keeps your wires and devices safe from harm. In homes, the most common reasons for tripping are overloaded circuits, shorts, ground faults, and broken appliances. If you keep having trouble, always call a licensed electrician.

Note: Circuit breakers use springs to trip quickly. Be careful when working with them so you do not get hurt.

Types of Circuit Breakers

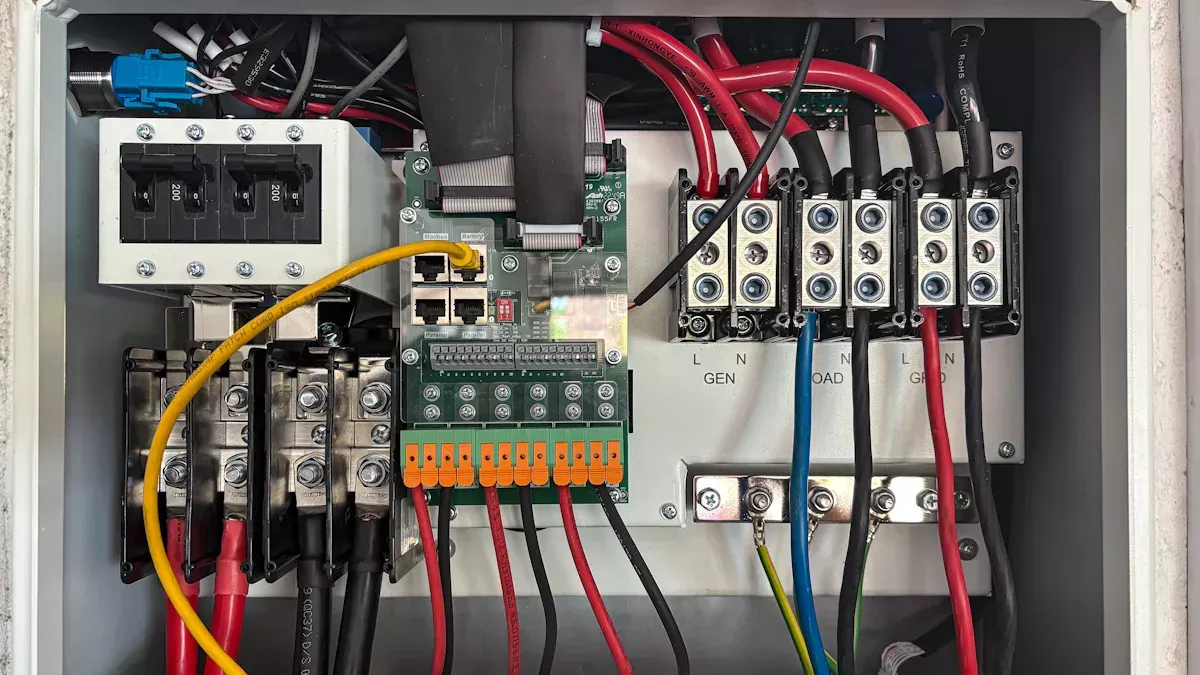

When you look inside your electrical panel, you will see many circuit breakers. Each one protects your home or business in a different way. Knowing about the types helps you pick the right one for each job.

Standard Circuit Breakers

Standard circuit breakers are the most common in homes. They protect circuits from too much current or short circuits. These breakers trip if the current goes over their limit. Single-pole breakers are for lights and outlets. They are usually rated for 15 or 20 amps. Double-pole breakers handle bigger things like ovens or air conditioners. They can control up to 240 volts.

• Standard circuit breakers protect lights, outlets, kitchen appliances, and HVAC.

• Each breaker connects to a certain part of your home, so you can control power safely.

Miniature circuit breakers are small and fit in most panels. They work well in homes, offices, and factories. Their breaking capacity is from 10KA to 16KA. This means they can stop big surges of electricity.

GFCI Circuit Breakers

GFCI circuit breakers protect you from electric shock. You need them in wet places like bathrooms, kitchens, and outside. GFCIs sense small changes in current between wires. If a ground fault happens, the breaker trips fast to stop the electricity.

• GFCI circuit breakers trip when they find a ground fault as small as 5 milliamps.

• They keep you safe from shocks, especially where water is around.

Sometimes, people call them residual-current devices. In some countries, people use earth leakage circuit breaker for the same thing.

AFCI Circuit Breakers

AFCI means arc-fault circuit interrupter. These breakers protect you from fires caused by electrical arcs. Arcs happen when wires are damaged or connections are loose. AFCI circuit breakers watch for dangerous arcs and trip before a fire starts.

• AFCIs are now needed in many bedrooms and living rooms.

• They can tell the difference between safe and unsafe arcs.

Some panels use dual-function breakers. These combine AFCI and GFCI protection. They are good for places like kitchens and laundry rooms.

Other Types

You will find more types of circuit breakers in big buildings and factories. Here is a table to help you learn about them:

Some, like high-voltage circuit breaker and air power circuit breakers, protect big machines and power lines. You may also hear about residual-current device and miniature circuit breakers in world standards. Each type of circuit breaker has a special job. You must pick the right one for your needs.

Tip: Always match the circuit breaker type and size to your wires and appliances. This keeps your home or business safe.

Choosing Circuit Breakers

Selection Factors

When you pick a circuit breaker, you must think about a few things. Choosing the right one helps keep your home or business safe. Here are some things to look at:

• Current rating (amperage): The breaker should match how much electricity your devices use.

• Voltage rating: The breaker must handle the voltage in your system. If you use the wrong voltage, it can be unsafe.

• Protection features: Some breakers have extra safety, like GFCI for shock or AFCI for fire.

• Type of circuit breaker: Use standard breakers for most rooms. Use GFCI in wet places. Use AFCI in bedrooms or living rooms.

• Compliance with codes: Always follow your local electrical rules.

• Environment: Do not put breakers where it is too hot, sunny, or wet.

• Interrupting capacity: Pick a breaker that can stop the highest current in your system.

• Consult an electrician: If you are not sure, ask a licensed expert for help.

⚠️ Warning: Using the wrong type or size of circuit breaker can cause overheating, sparks, or even fire. Always check your choice before you buy.

Sizing and Compatibility

You also need to think about the size and if the breaker fits your panel. The breaker must fit your electrical panel and work with your system. Here is a table to help you see the main points:

When you pick a circuit breaker, always check the brand. For example, Square D QO breakers only fit Square D QO panels. Using a breaker from another brand can be unsafe and break the rules. Some popular brands are Square D, Siemens, Eaton, and GE. Prices start at $5 for basic ones and go over $50 for special breakers with more features.

Tip: Never use a breaker that is not made for your panel. This can cancel your warranty and make you fail inspections.

Circuit Breakers: Pros and Cons

Advantages

Using circuit breakers in power systems gives you many good things. They help keep your home or business safe and working well. Here are some main benefits:

• You can reset a circuit breaker after it trips. Fuses must be replaced each time they blow.

• Circuit breakers protect against overloads and short circuits. Fuses only stop overloads.

• You can test circuit breakers when you put them in or use them. Fuses cannot be tested without breaking them.

• Circuit breakers in homes and substations trip faster and stop more current. This means your equipment is safer and there is less chance of fire.

• Many circuit breakers have extra features like GFCI and AFCI. These help stop shocks and fires.

• Some circuit breakers can be controlled from far away. This makes them safer and easier to use.

• Over time, circuit breakers save money. You do not need to buy new fuses or extra parts. They last longer and need less fixing.

�� Tip: Check your circuit breakers often. This helps stop big repairs and keeps your system working well.

Disadvantages

Even though circuit breakers in power systems have many good points, there are some problems too:

• Circuit breakers cost more at first than fuses. You might pay more to put them in.

• They are harder to use than fuses. Only an expert should put them in or change them.

• Circuit breakers in homes and substations can stop working after many years. You may need to get new ones after 30 to 40 years, or sooner for GFCI or AFCI types.

• Some old or less sensitive models may not trip fast enough during a surge. This can mean less safety.

• If a circuit breaker gets stuck or does not trip, it can cause a fire. Good quality and regular checks are important.

• High-voltage circuit breaker systems need special care and experts to handle them.

⚠️ Note: Always pick a trusted brand and check your circuit breakers often. This makes sure your safety device works right.

Circuit breakers help stop fires, shocks, and damage by cutting off unsafe electricity. You must use the right kind for each room, like standard, GFCI, or AFCI.

• Circuit breakers work quickly to stop dangers.

• It is easier to reset them than to change fuses.

• Checking and updating them often keeps things safe.

Always get a licensed electrician to put in or fix circuit breakers. Keeping everyone safe from electrical problems is very important.

FAQ

What should you do if a circuit breaker keeps tripping?

You should unplug devices on that circuit. Try resetting the breaker. If it trips again, you may have a wiring problem or faulty device. Call a licensed electrician to check your system. Do not ignore repeated tripping.

Can you replace a circuit breaker yourself?

You should not replace a circuit breaker unless you have electrical training. Working inside a panel can be dangerous. Always hire a licensed electrician for breaker replacement. This keeps you safe and follows local codes.

How often should you test your circuit breakers?

You should test GFCI and AFCI breakers every month. Press the "test" button on the breaker. If it does not trip, call an electrician. Standard breakers do not have test buttons, but you should check them during yearly electrical inspections.

What is the difference between a fuse and a circuit breaker?

A fuse melts and breaks the circuit when too much current flows. You must replace it after it blows. A circuit breaker trips and shuts off power, but you can reset it. Circuit breakers are safer and easier to use.

Why do you need different types of circuit breakers?

Different types protect against different dangers. Standard breakers stop overloads and short circuits. GFCI breakers protect you from shocks near water. AFCI breakers stop fires from electrical arcs. You need the right type for each area in your home.
