Core System Features & Circuit Protections

High Voltage and Current Capacity

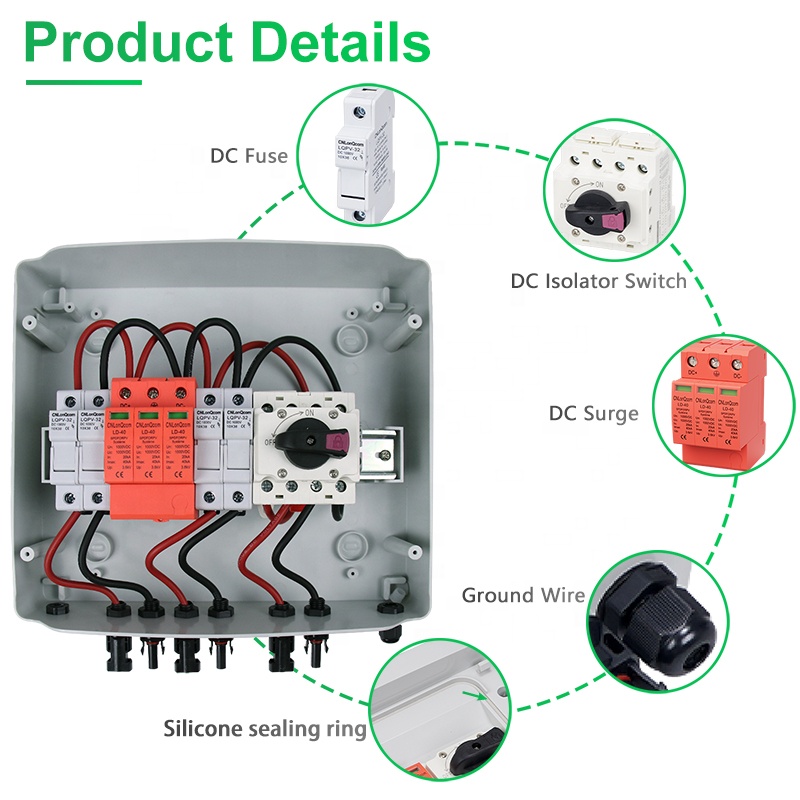

The 1000V 32A Solar Combiner Box is engineered to handle demanding electrical loads for extensive renewable energy projects. It supports a maximum DC voltage of 1000V and can safely manage up to a 32A output current, making it an indispensable component for both residential arrays and large-scale commercial solar installations. To ensure absolute circuit safety, this unit integrates premium lightning surge protectors and dedicated DC circuit breakers. Installers will notice the firm, reassuring mechanical click when engaging the breakers, which provide immediate anti-reverse and short-circuit protection, fully safeguarding the entire photovoltaic architecture from unexpected electrical surges.

Durable and Weather-Resistant Design

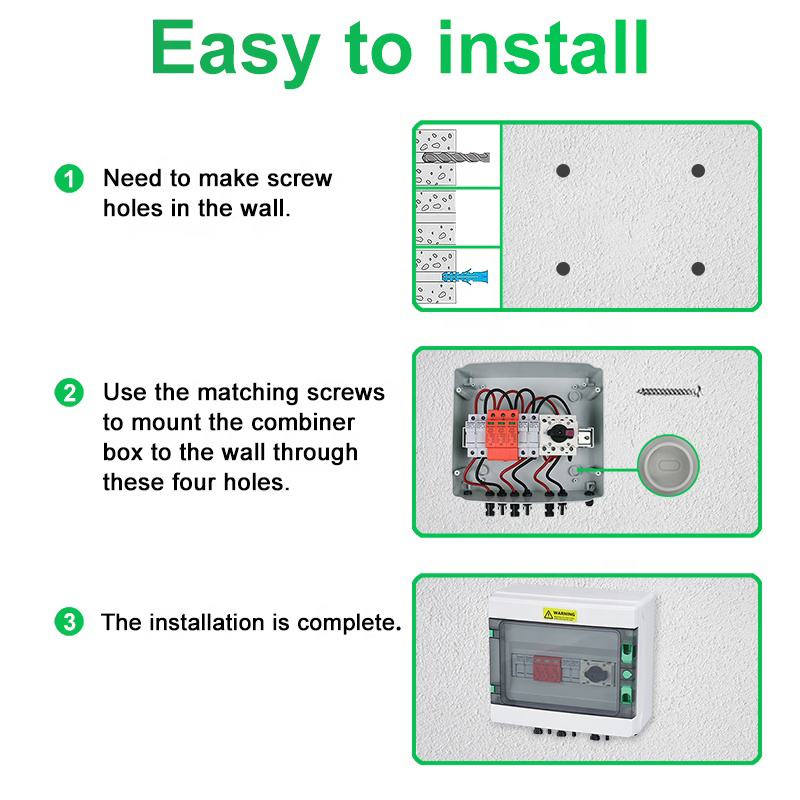

Constructed with premium ABS plastic, this advanced solar combiner box offers strict IP65 protection, ensuring it is completely waterproof, dustproof, and UV-resistant. This resilient design makes it perfect for use in outdoor solar systems, capable of withstanding harsh environmental conditions without structural degradation. The exterior features a smooth, hard finish that repels water instantly, while the transparent, UV-blocking viewing window allows technicians to perform quick visual inspections without breaking the internal seal. Furthermore, it comes equipped with standard waterproof joints and a complete set of mounting hardware, supporting highly flexible and rapid wiring procedures on-site.

Versatile Compatibility with Solar Modules

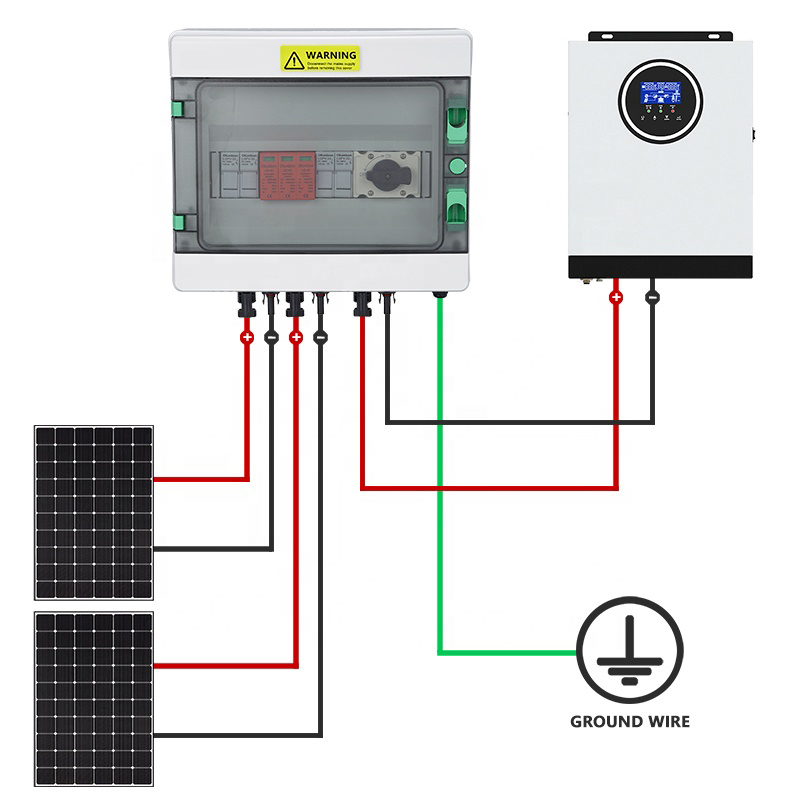

This wall-mounted solar combiner box is compatible with various solar panel types, including mono, poly, and thin-film solar modules. It provides exceptional flexibility in design and installation, meeting the precise needs of different solar system configurations. By supporting multi-string efficient aggregation, the unit allows for intuitive monitoring of operational status across the entire array. This intelligent layout makes fault troubleshooting exceptionally convenient, significantly lowering post-installation maintenance costs and ensuring that project developers can maintain optimal energy yields with minimal physical intervention.

Wide Operating Temperature Range

Designed for reliable performance across diverse geographic locations, this solar combiner box operates efficiently within a temperature range of -25°C to +55°C. It ensures stable operation in diverse climates, making it a versatile solution for solar power systems in both hot, arid deserts and cold, high-altitude environments. The internal thermal management prevents condensation and heat buildup, maintaining the integrity of the copper connections regardless of external weather extremes.

Product Manufacturing Process & Engineering Excellence

Advanced Production Technology

Our facility utilizes precision-driven automated manufacturing systems to ensure the exact fabrication of our solar combiner boxes. By replacing manual assembly with robotic precision in critical stages, we guarantee consistent structural integrity and optimal alignment of all internal components. This methodical approach translates to highly dependable products for solar power systems, ensuring that every unit leaving the factory meets the exact specifications required by professional system integrators.

Premium Material Selection

We select industrial-grade ABS plastic for its exceptional durability, offering unparalleled resistance to UV rays, moisture, and dust, ensuring long-term protection for solar installations. Internally, the unit features a flame-retardant housing, heavy-duty purple copper busbars, and premium-grade contact points. These carefully chosen materials ensure extremely low electrical loss and long-term stable conductivity, preventing heat generation even under maximum load conditions.

Precision Assembly

Each solar combiner box is assembled with meticulous care, maintaining the strict IP65 waterproof and dustproof standard for outdoor solar systems, fully protecting internal components. During assembly, technicians apply precise torque to the waterproof glands, creating a tight, hermetic rubber seal that provides distinct tactile feedback when properly secured. This attention to mechanical detail prevents any micro-leaks that could compromise the electrical internals over decades of field use.

Rigorous Quality Testing

Each unit undergoes strict laboratory testing for voltage, current, and temperature conditions, ensuring reliable performance in all solar energy systems. Fully compliant with CE, UL, and ISO international standards, our enclosures are subjected to extreme stress tests. These include glow-wire flammability assessments, alternating high-low temperature cycling, and simulated sandstorms and heavy rain, guaranteeing survival in the most unforgiving environments.

Final Inspection

Before shipment, we conduct a thorough final visual and mechanical inspection to ensure absolute compliance with international standards and solar power system safety. Every terminal block is checked for secure fastening, and the external casing is inspected for flawless molding, ensuring the product arrives ready for immediate deployment.

Application Scenarios & OEM Supply Capabilities

Beyond standard installations, this aggregation unit is designed for immense versatility across various deployment environments. As a direct source manufacturer, we provide extensive customization and reliable supply chain solutions tailored for large-scale procurement.

• Diverse Application Scenarios: Widely adapted for grid-tied and off-grid residential setups, RV solar arrays, agricultural photovoltaic water pump systems, and expansive commercial power stations.

• OEM/ODM Customization: We offer deep customization options, from unique enclosure branding to specific internal terminal layouts, catering directly to the technical requirements of project developers.

• Supply Chain Stability: Backed by substantial monthly production capacity, we ensure predictable lead times and manageable delivery schedules for bulk project orders, complete with comprehensive long-term warranty support.

Frequently Asked Questions (FAQs)

What is the voltage and current capacity of the solar combiner box?

The 1000V 32A solar combiner box supports a maximum DC voltage of 1000V and a 32A output current. This specific rating allows system integrators to safely aggregate multiple string inputs without risking overload, making it highly effective and reliable for large solar installations requiring stable, continuous direct current flow.

Is the solar combiner box suitable for outdoor use?

Yes, this solar combiner box is strictly IP65-rated, providing comprehensive waterproof, dustproof, and UV protection. The heavy-duty sealing mechanisms and resilient polymer construction make it perfect for outdoor solar systems, ensuring the internal electrical components remain completely isolated from rain, airborne particulates, and intense sunlight.

Which types of solar panels are compatible with the solar combiner box?

The solar combiner box is fully compatible with mono, poly, and thin-film solar modules. This universal compatibility offers versatile use for various solar power configurations, allowing procurement managers to standardize their aggregation hardware across different project sites regardless of the specific panel technology being deployed.
