Overview

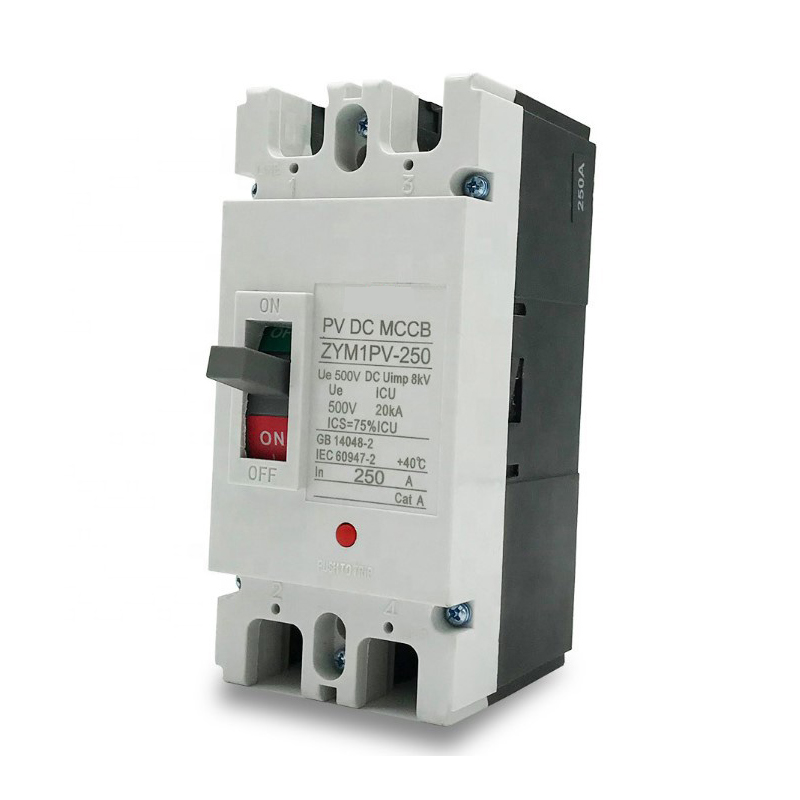

The 1P DC500V DC Solar Molded Case Circuit Breaker is engineered specifically for the demanding environments of modern photovoltaic arrays and commercial energy storage facilities. Enclosed in a dense, heavy-duty thermosetting polymer casing that feels unyielding to the touch, this unit provides critical overcurrent protection where standard alternatives fail. When engaging the toggle, operators will notice a distinct, firm mechanical snap—a tactile confirmation of its secure internal contact alignment. Designed to intercept and neutralize dangerous direct current faults, it acts as a primary defense mechanism against electrical fires and equipment degradation in solar power generation. By isolating faulty circuits with precision, this breaker preserves the integrity of expensive inverters and battery banks, ensuring uninterrupted power flow for large-scale solar installations and industrial control centers.

Features

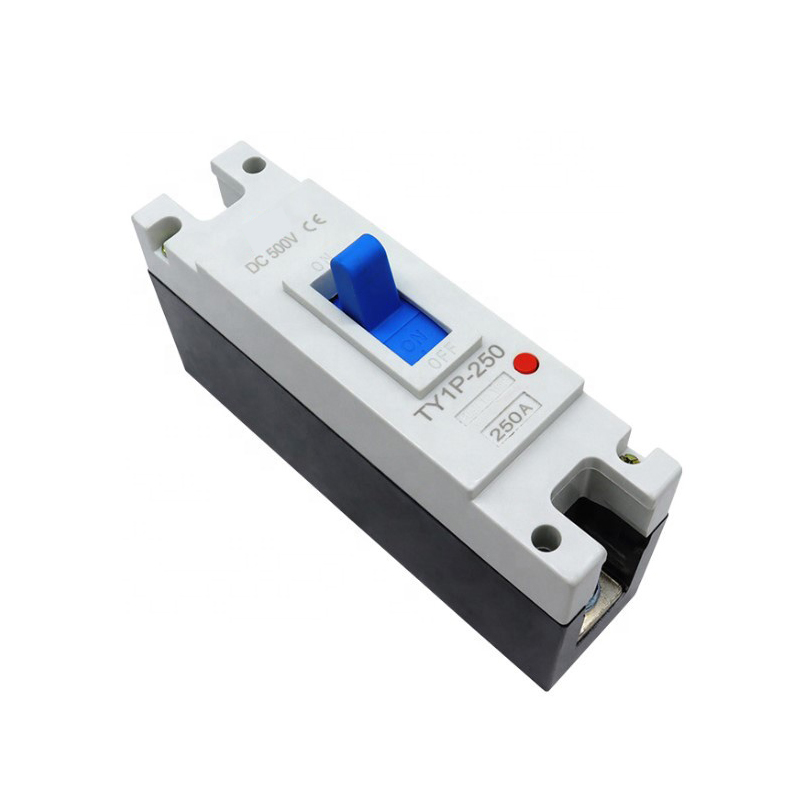

Dedicated Magnetic Blow-Out Technology

Direct current arcs are notoriously difficult to extinguish because they lack a natural zero-crossing point. This breaker incorporates a specialized magnetic blow-out chamber designed strictly for high-voltage DC systems. Upon fault detection, the internal magnetic field rapidly stretches, cools, and splits the arc, snapping it out in milliseconds. This rapid suppression prevents severe thermal damage to the contacts and eliminates fire hazards within solar combiner boxes.

Compact Modular Architecture

Internal space is a premium asset inside solar arrays and industrial control cabinets. The optimized, modular footprint of this 1P breaker significantly reduces the physical space required for installation. This compact design allows panel builders to fit more protective devices into standard enclosures without overcrowding, ultimately reducing the overall hardware footprint and lowering comprehensive system enclosure costs.

Extended Mechanical and Electrical Endurance

Industrial environments subject electrical components to extreme operational wear. Built for longevity, this unit delivers exceptional mechanical and electrical cycle lifespans even under high-frequency switching conditions. The internal mechanisms resist carbon buildup and contact pitting, offering facility managers a low-maintenance solution that withstands years of daily engagement in harsh, fluctuating ambient temperatures.

Flexible Wiring Capabilities

Complex wiring layouts in renewable energy setups often lead to installation bottlenecks. Featuring a highly adaptable wiring design with non-polarity options, this breaker accommodates diverse circuit configurations. It simplifies the physical installation process, reduces the likelihood of costly reverse-polarity connection errors, and accelerates the commissioning phase for field technicians working on large-scale solar farms.

Precision Overcurrent Calibration

Calibrated to differentiate between normal operational surges and genuine fault conditions, the internal trip unit responds strictly to sustained overcurrents or severe short circuits. Manufactured in strict accordance with international standards such as IEC 60947-2, it eliminates nuisance tripping during peak solar harvesting hours, keeping energy production stable while maintaining absolute safety.

Applications

The 1P DC500V Circuit Breaker serves as a critical isolation and protection device across a diverse range of commercial and industrial sectors:

· Photovoltaic (PV) Combiner Boxes: Acts as the primary isolation point for solar string arrays. It intercepts reverse currents and overloads before they can reach sensitive grid-tied inverters, protecting the financial investment in commercial solar farms and ensuring stable daily energy harvesting.

· Commercial Battery Storage Racks: In large-scale energy storage facilities, DC drives and battery banks require precise electrical isolation. This breaker safeguards the energy reservoirs from sudden power surges during rapid charge or discharge cycles, maintaining optimal battery cell health and preventing thermal runaway.

· Electric Vehicle (EV) Charging Infrastructure: As DC fast-charging stations multiply, protecting the internal power modules from grid-side or vehicle-side faults is critical. This device ensures stable power delivery, preventing thermal overloads during continuous, high-amperage charging sessions for commercial fleets.

· Industrial Motor Control Centers: For facilities utilizing heavy-duty DC motors, this unit provides essential short-circuit protection. It handles the intense starting currents of industrial machinery without degrading the internal contact points, keeping automated production lines running smoothly.

· Telecommunication Power Supplies: Cell towers and data centers rely heavily on direct current backup systems. The breaker acts as a reliable disconnect switch and fault interrupter, ensuring that sensitive communication servers remain online and protected during unpredictable grid fluctuations.

Description

Understanding the correct pole configuration is essential for system safety. While this specific model is a 1P device ideal for single-line isolation in grounded systems, the broader series accommodates various architectures. A 1P setup is typically utilized for positive or negative line protection in specific grounded PV arrays. For ungrounded systems, 2P configurations provide simultaneous disconnection of both lines. The 3P and 4P variants are reserved for multi-string or specialized commercial setups requiring comprehensive multi-line isolation. Proper selection ensures targeted protection tailored to the exact grounding method of your solar array.

Frame current: 250, 315, 400, 630, 800 | 2P, 3P | Rated Current (63~800)A

• Adopt the new structural design, with fully functional accessories , beautiful appearance and high breaking ability;

• Full rated current from 63 to 800A;

• Wide application range of rated voltage, can operate normally at different voltages.

Frequently Asked Questions

Why can't alternating current (AC) breakers be used in DC solar systems?

Alternating current naturally crosses zero volts multiple times per second, which inherently helps extinguish electrical arcs during a fault. Direct current, however, provides a continuous, unyielding flow of power. Standard AC breakers lack the specialized magnetic blow-out chambers required to force a sustained DC arc into the extinguishing chutes. Attempting to use an AC breaker in a DC500V photovoltaic system poses a severe fire risk, as the continuous arc will likely melt the internal contacts instead of safely breaking the circuit.

How do I determine the correct amperage and voltage rating for my installation?

Proper sizing is critical for system safety and longevity. The voltage rating of the breaker must exceed the maximum open-circuit voltage of your entire solar string, factoring in potential voltage spikes during the lowest expected ambient temperatures. For the current rating, industry safety standards generally recommend sizing the breaker at 125% to 156% of the short-circuit current (Isc) of the connected array. This calculation prevents nuisance tripping during peak sunlight hours while ensuring the breaker reacts instantly to isolate genuine electrical faults.
