SJW5
KCISE
SJW5
| Quantity: | |
|---|---|

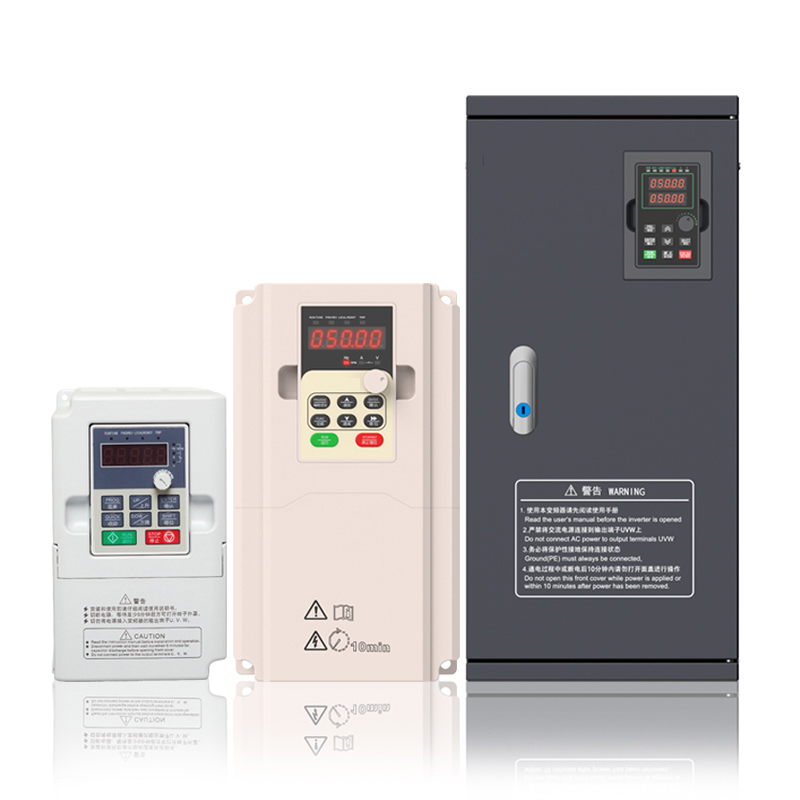

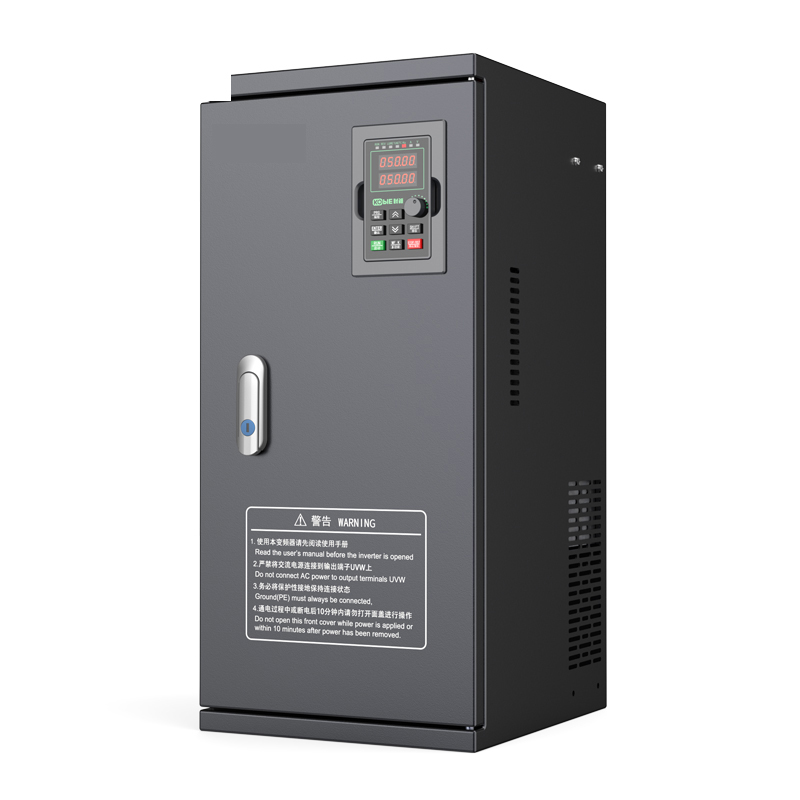

The 380V Single Phase Frequency Inverter Drive is a sophisticated piece of technology that stands at the forefront of industrial automation. This powerful converter is meticulously engineered to transform fixed-frequency AC power into a variable-frequency AC output, offering a dynamic 5kW of power to drive machinery with precision and efficiency. It is a testament to modern engineering, designed to meet the rigorous demands of industrial applications where control over motor speed and torque is paramount.
· Power Range: The inverter's 5kW power output is a versatile solution that caters to a broad spectrum of single-phase applications, from small-scale industrial processes to larger machinery operations.
· Input Voltage: Operating seamlessly on a standard 380V single-phase AC supply, it integrates effortlessly with existing power systems, minimizing the need for costly infrastructure upgrades.
· Frequency Range: The adjustable output frequency range, which spans from 0 to 400Hz, is a testament to its versatility, allowing users to fine-tune the performance of their motors to match the specific requirements of their tasks.
· Control Methods: With support for V/F control, sensorless vector control, and closed-loop vector control, the frequency inverter provides a comprehensive suite of options to ensure optimal performance tailored to the application at hand.

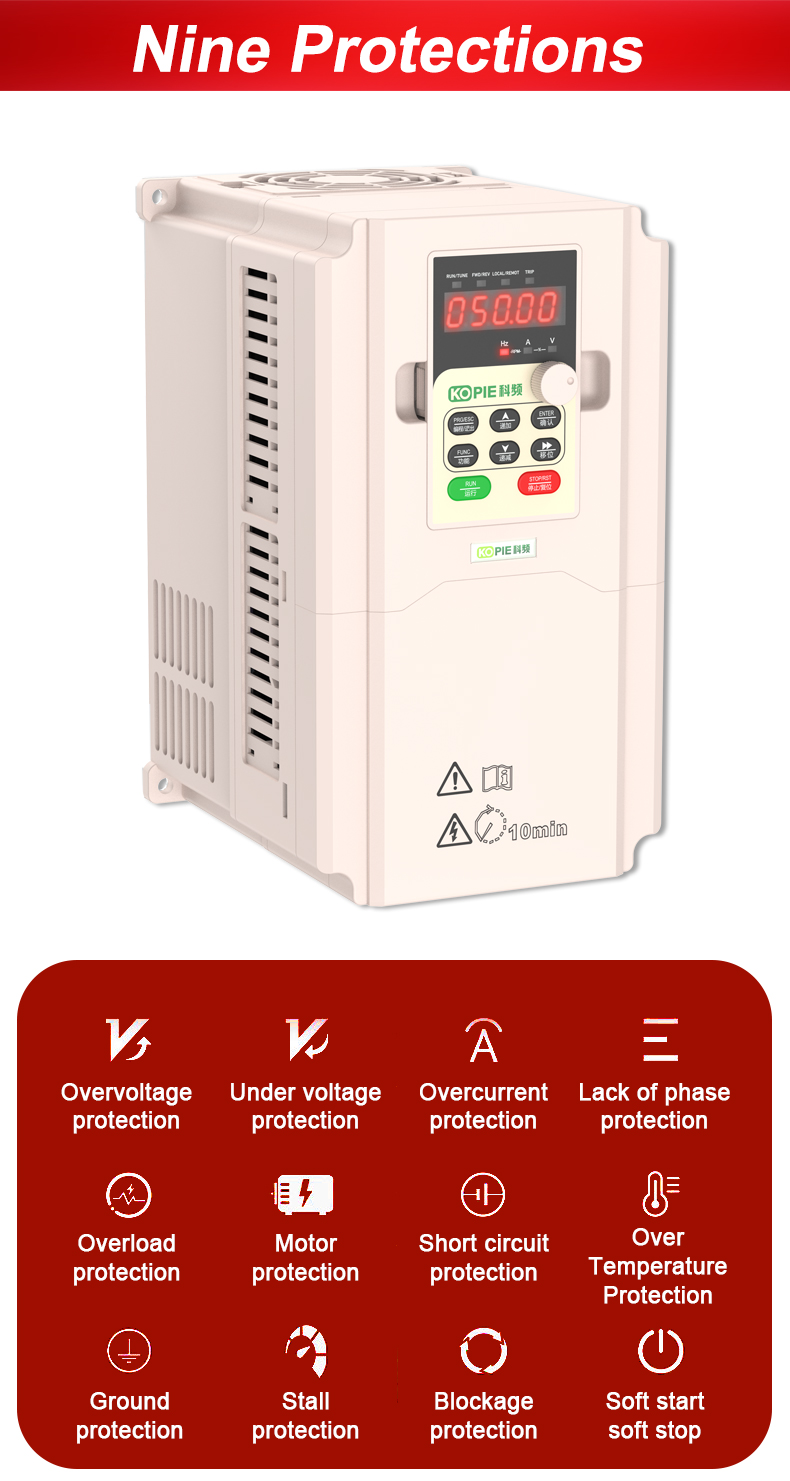

· Protection Features: The inverter is equipped with a comprehensive suite of protection features, including over-voltage, under-voltage, over-current, and over-temperature protection, which act as a safeguard against potential damage, ensuring the longevity and reliability of the equipment.
· User-Friendly Interface: The intuitive LCD display and keypad are designed for ease of use, allowing operators to set up and monitor the inverter's operational parameters with confidence and minimal training.
· Compact Design: Its compact size and robust construction make it an ideal choice for installations where space is at a premium, while its rugged design ensures it can withstand the rigors of harsh industrial environments.
· Energy Efficiency: The high-efficiency design not only reduces power consumption but also contributes to lowering operational costs, making it an environmentally friendly and cost-effective solution for businesses.
The 380V Single Phase Frequency Inverter Drive is a versatile workhorse that finds its place in a multitude of industries where the ability to control motor speed is crucial. Applications include but are not limited to:
· Conveyors and material handling systems, where the ability to adjust speed can significantly enhance efficiency and throughput.
· Centrifugal pumps and fans, where variable speed control allows for energy savings and precise process control.
· Machine tools and woodworking machinery, where the inverter's precision control can lead to improved quality and consistency in manufacturing.
· Textile machines and packaging equipment, where the reliability and control offered by the inverter can lead to increased productivity and reduced downtime.
· Food processing machinery and pharmaceutical equipment, where the ability to maintain exact operating conditions is critical for product quality and safety.
· HVAC systems, where the inverter can be used to optimize temperature and airflow, leading to significant energy savings and improved comfort.
This frequency converter is not just a device; it is a strategic asset that can transform the way businesses operate, offering a blend of power, precision, and efficiency that is hard to match in the industrial automation landscape.
DESCRIPTION:
| Phase | Single Phase | 3 Phase | ||
| Capacity | 500VA~45KVA | 3KVA~1500KVA | ||
| Input Voltage (optional) | 1 phase 2 lines +G:110V(2~5KVA),220V/230V/240V±10% | |||
| 3 phase 4 lines+G:190/110,200/115,203/120,220/128,230/132,240/130±10% | ||||
| 3 phase 4 lines+G:380/220,400/230,415/240,440/254,460/265,480/2770V±10% | ||||
| 3 phase 3 lines+G:220,230,240,380,400,415,440V | ||||
| Input Frequency | 50~60HZ±5% | |||
| Output Voltage | 110V System:0~150V | |||
| 220V System:0~300V | ||||
| Load Regulation | ±≤1% | |||
| Protector | All overload, overtemperature, short circuit, instantaneous power off protection, warning device | |||
| Working | Temperature:0-40 ºC,Humidity:0-90%(non-condensing) | |||
| Model | Height(mm) | Width(mm) | Length(mm) | Weight(kg) |
| SJW5-20KVA | 680 | 360 | 450 | 74.5 |
| SJW5-30KVA | 680 | 360 | 450 | 92 |
| SJW5-40KVA | 740 | 390 | 500 | 105.5 |
| SJW5-50KVA | 740 | 390 | 500 | 111.5 |
| SJW5-60KVA | 740 | 390 | 500 | 121.5 |
| SJW5-80KVA | 950 | 500 | 650 | 154.5 |
| SJW5-100KVA | 950 | 500 | 650 | 175 |
| SJW5-120KVA | 950 | 500 | 650 | 200 |
