Product Features & Engineering Excellence

High-Interrupting Capacity & Arc Quenching

When electrical faults threaten facility infrastructure, rapid isolation is non-negotiable. Boasting an impressive interrupting capacity of 50kA at 415V and 35kA at 690V, the ACB safely clears severe fault currents within a mere 2-3 cycles (33-50ms). This lightning-fast response minimizes thermal and mechanical stress on downstream electrical infrastructure during catastrophic fault conditions. Its advanced arc quenching system uses a precisely engineered compressed air mechanism to rapidly stretch, cool, and extinguish electrical arcs. Operators can rely on the decisive, heavy-duty mechanical engagement that prevents contact welding and ensures consistent, degradation-free performance across thousands of operations. The distinct, reassuring sound of the breaker clearing a fault is a testament to its formidable internal construction.

Intelligent Protection & Monitoring

Modern power distribution demands more than simple mechanical tripping; it requires deep situational awareness. The integrated electronic trip unit provides multi-stage protection including overcurrent, short-circuit, ground fault, and thermal overload protection with finely adjustable settings to match specific system requirements. Facility managers benefit from a high-contrast digital display showing real-time current, voltage, and power parameters. Furthermore, the unit offers advanced communication capabilities via Modbus RTU/Profibus for direct integration into SCADA systems. To satisfy complex distribution networks, the breaker supports extensive accessory expansion. Project engineers can easily integrate optional shunt releases, undervoltage releases, auxiliary contacts, and closing electromagnets, transforming a standard breaker into a highly tailored grid-management node. Advanced diagnostics continuously track breaker health metrics and predict maintenance needs before unexpected shutdowns occur.

Rugged Construction & Safety Features

Built strictly for industrial durability, the ACB features a heavy-gauge metal-clad enclosure that feels incredibly solid to the touch, providing certified IP3X protection against dust, tools, and airborne debris. It is engineered to operate reliably in fluctuating ambient temperatures ranging from -5℃ to 40℃. Safety enhancements are woven into every aspect of the design, including a rigid mechanical interlock preventing unauthorized access, comprehensive arc flash protection shields, and a fail-safe trip-free mechanism that ensures immediate operation regardless of the handle's physical position during faults. Before leaving the facility, every unit undergoes rigorous quality control and reliability testing, including extreme temperature rise evaluations, mechanical endurance trials, and high-frequency short-circuit breaking tests. Fully compliant with IEC 60947-2, CE, and CCC international standards, this breaker guarantees uncompromising safety. The breaker supports both manual and motorized operation for flexible control.

Versatile Installation & Space Optimization

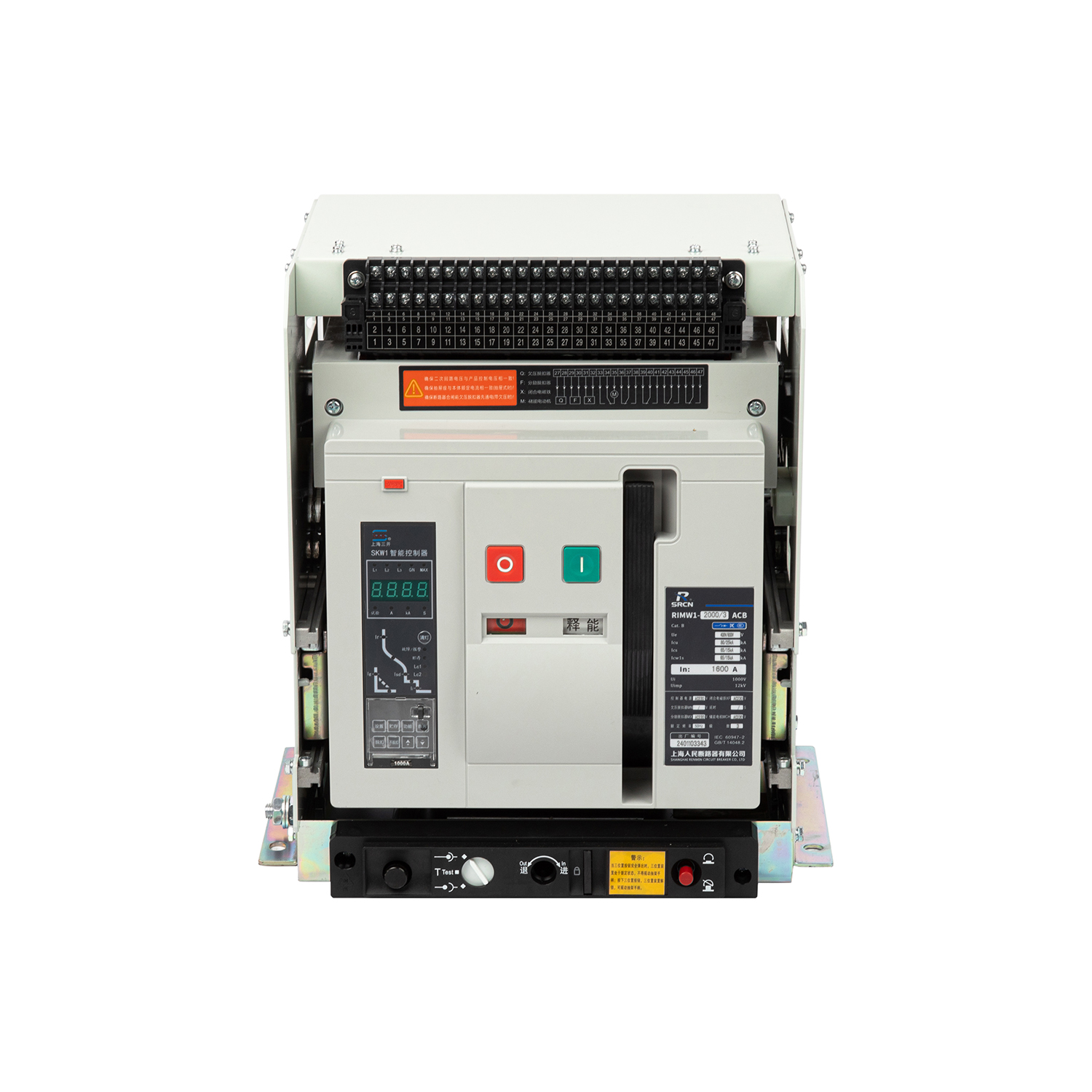

Understanding the spatial constraints of modern switchgear rooms, this breaker is available in both Drawer (draw-out) and Fixed type configurations. The drawer-type version is specifically engineered for rapid maintenance; operators can feel the smooth, low-friction glide as the breaker is racked out, drastically reducing facility downtime during critical servicing windows. By utilizing a highly compact, modular body design, the unit maximizes the internal space utilization of standard distribution cabinets without sacrificing high-current carrying capabilities, ultimately lowering the total cost of the switchgear assembly.

Target Applications & Industry Adaptability

This industrial ACB serves as the critical first line of defense for various high-power applications, ensuring continuous operation where power loss translates directly to massive financial deficits. Its industrial-grade architecture makes it essential for:

• Primary distribution boards in industrial plants: Safeguarding heavy motor loads and preventing cascading plant-wide failures.

• Data center power distribution systems: Ensuring absolute uptime for server racks where even a millisecond of disruption is unacceptable.

• Commercial building main electrical service entrance: Managing the complex, fluctuating loads of HVAC systems, elevators, and lighting grids.

• Renewable energy power plants (solar farms, wind turbines): Handling the unique harmonic profiles and variable outputs of green energy generation.

• Heavy manufacturing facilities and production lines: Protecting sensitive robotics and automated assembly lines from destructive electrical surges.

• Water treatment and pumping stations: Maintaining critical municipal infrastructure operations during grid instability.

• Mining and mineral processing operations: Thriving in environments with heavy vibration, dust, and continuous heavy-duty cycles.

• Healthcare facilities requiring uninterrupted power: Guaranteeing reliable electricity to life-saving medical equipment and surgical theaters.

Frequently Asked Questions (FAQ)

How to properly size an ACB for specific industrial applications?

Accurate sizing is the cornerstone of electrical safety and operational efficiency. Sizing depends on three key factors: the maximum continuous current of the circuit (breaker rating should exceed this baseline by 20-25% to prevent nuisance tripping), the available fault current at the specific installation point (breaker interrupting capacity must strictly exceed this calculated value), and the operational voltage level of the system (e.g., 415V vs. 690V). Furthermore, facility planners must consider future load growth (typically projecting a 10-15% increase over 5 years) and carefully consult the time-current characteristic curves to ensure precise coordination with downstream protective devices.

What is the importance of breaker coordination in industrial systems?

Proper coordination acts as a strategic firewall, ensuring that only the specific breaker closest to a fault operates, thereby minimizing the physical area affected by an electrical outage. The 400-1600AMP ACB features highly adjustable time delays (ranging from 0.1-30 seconds) and precision pickup settings that can be programmed to coordinate flawlessly with downstream MCCBs and distribution fuses. This selective tripping methodology prevents widespread power interruptions during localized faults, dramatically improving overall system reliability and significantly reducing the exorbitant costs associated with facility-wide downtime.

What maintenance procedures are required for optimal performance?

To guarantee decades of reliable service, a structured maintenance regimen is imperative. Regular maintenance includes monthly visual inspections of copper connections and LED indicators, alongside annual thermal scanning to proactively detect abnormal hot spots before they escalate. Comprehensive operational testing must be conducted every 2-3 years. The electronic trip unit should be professionally calibrated every 5 years to ensure absolute accuracy in protection settings. Mechanical components, which operators will notice maintain a smooth, heavy-duty tactile resistance, require specialized lubrication every 10,000 operations or 5 years, whichever comes first. Always strictly follow standardized lockout/tagout procedures during maintenance, and exclusively use manufacturer-approved replacement parts to maintain original safety certifications.
