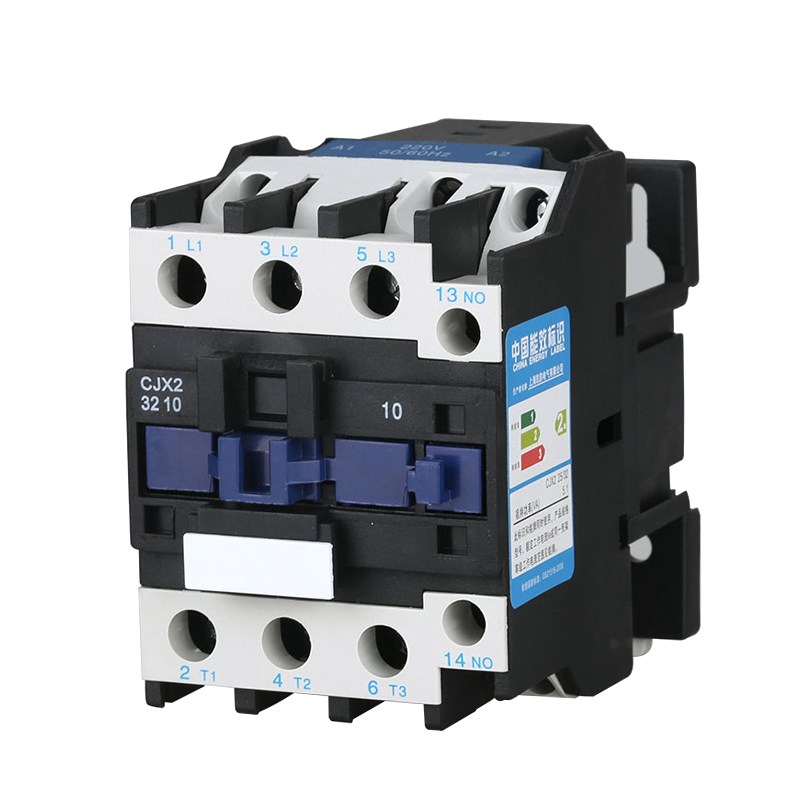

CJX2
KCISE
| Voltage: | |
|---|---|
| Specifications selection: | |
| Quantity: | |
In power circuits used in industrial automation, building electrical systems, and smart homes, AC contactors are key devices for controlling circuit on/off states. They utilize the principle of electromagnetic induction to remotely and frequently control loads such as AC motors, heating equipment, and lighting circuits. They act as a "bridge" connecting control signals to high-power electrical equipment and are widely used in low-voltage power distribution systems and electrical drive systems.
I. Core Components: Four Major Components Ensure Stable Operation
The structural design of AC contactors revolves around two core requirements: "reliable switching" and "safety protection," and mainly consists of the following four parts:
Electromagnetic system: The "power source" of the contactor, including the coil, stationary iron core, and moving iron core. When the coil is supplied with a rated AC voltage, it generates an electromagnetic force that attracts the moving iron core, causing the contacts to move; after the coil is de-energized, the iron core is separated by the spring's restoring force, and the contacts return to their initial state.
Contact system: The "actuator" that realizes the switching of the circuit, divided into main contacts and auxiliary contacts. The main contacts have a large rated current (usually from 10A to several hundred A) and are directly connected in series in the main circuit to control high-power loads; the auxiliary contacts have a small rated current (usually 5A) and are mostly used for self-locking, interlocking or signal feedback in control circuits.
Arc extinguishing devices: a "protective shield" against arc damage. When the main contacts interrupt a large current, a high-temperature arc is generated. Arc extinguishing devices (such as grid arc extinguishing chambers and ceramic arc extinguishing hoods) quickly extinguish the arc by cooling and dividing it, preventing contact erosion and extending service life.
Base and outer shell: Provide structural support and safety protection. They are usually made of high-temperature resistant and highly insulating plastics (such as phenolic resin and nylon) to isolate conductive parts from the external environment and prevent electric shock or foreign objects from entering.
2.Key technical parameters: the core basis for selection
When selecting an AC contactor, pay close attention to the following parameters to ensure they match the load requirements:
Rated Voltage (Ue): This refers to the rated voltage that the contactor's main contacts can withstand long-term. It must be consistent with the main circuit voltage. Common specifications include 220V, 380V, and 660V.
Rated Current (Ie): This refers to the current that the contactor's main contacts can continuously carry under rated operating conditions (such as rated voltage and rated frequency). It needs to be selected based on the rated current of the load (usually with a margin of 1.2-1.5 times to avoid overload). Common specifications include 10A, 16A, 25A, 40A, 63A, and 100A.
Coil Voltage (Uc): This refers to the voltage required for the contactor coil to operate normally. It must match the control circuit voltage. Common specifications include DC24V, AC220V, and AC380V to prevent coil burnout or failure to engage.
reaking capacity: This refers to the current value that a contactor can reliably make and break under specified conditions, including the rated making current (usually 5-10 times the rated current) and the rated breaking current (usually 3-8 times the rated current). It must meet the inrush current requirements during load startup (e.g., the starting current of a motor is approximately 5-7 times the rated current).
Mechanical life and electrical life: Mechanical life refers to the number of times the contactor can operate without load (usually up to millions of times), while electrical life refers to the number of times it can operate with load (usually up to hundreds of thousands of times). The appropriate lifespan should be selected based on the equipment's operating frequency to ensure long-term stable operation.
