DC Molded Case Circuit Breaker for 1000V-1500V 400A630A Battery USP New Energy Charging Pile Air Switch 2P Manufacturer

DC Molded Case Circuit Breaker for 1000V-1500V 400A630A Battery USP New Energy Charging Pile Air Switch 2P Manufacturer

Provides protection against overcurrent: The circuit breaker can trip and disconnect the circuit in case of overcurrent, preventing damage to the electrical system or equipment.
Offers short-circuit protection: The circuit breaker can quickly interrupt the circuit in case of a short circuit, minimizing the risk of fire or electrical hazards.
Adjustable settings: The circuit breaker may have adjustable settings for rated current, overload delay time, short-circuit delay time, current multiples, and other parameters to suit specific application requirements.
Compact design: DC molded case circuit breakers are designed to be compact and space-saving, making them suitable for installations where space is limited.
Reliable operation: These circuit breakers are designed for reliable and consistent performance, ensuring the safety and protection of the electrical system.

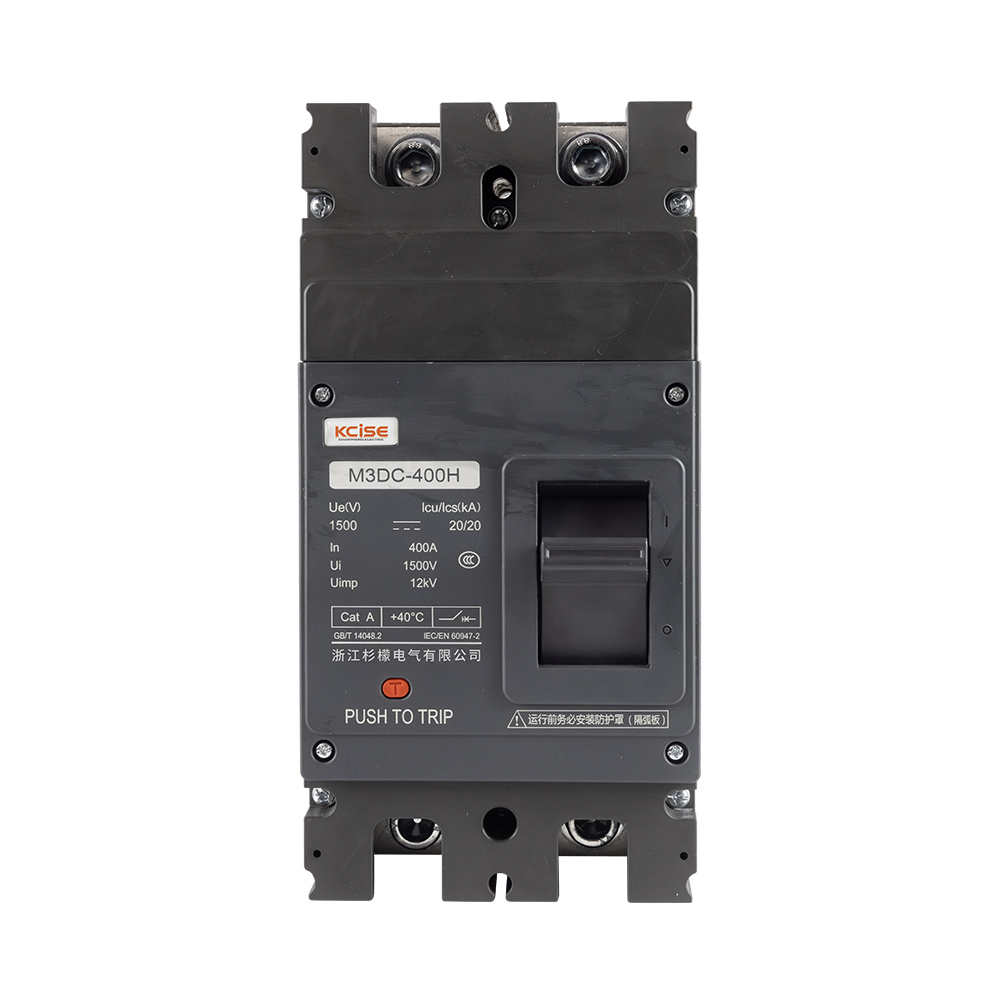

Model:
M3DC-400H
Brand:
KCISE
Code:
M3DC-400H

Quantity:
400A:	1000V 1500V
630A:	1000V 1500V
Availability:





Inquire Add to Basket

Technical parameter

DC Molded Case Circuit Breaker MCCB Air Switch Battery USP New Energy Charging Pile

Frame current		63		160
Model		63L	63M	160L	160M	160H
Pole		3, 4		3, 4
Rated current		10, 16, 20, 32, 40, 50, 63		10, 16, 20, 32, 40, 50, 63, 80, 100, 125, 140, 160
Rated voltage		AC400V		AC400V
Icu/Ics Short circuit breaking capacity	AC400V	35/35	50/50	50/50	65/65	100/85
Number of operating cycles	ON	6000		3000
	OFF	9000		7000
Overall dimension	a	75	100	90	120
	b	130		155
	c	68		68
	ca	90		90
Weight		0.65	0.8	1.4	1.5
Electric operating device		●		●
External drive operating handle		●		●
Automatic tripping device		Self heating electromagnetic type		Thermal electromagnetic type

Frame current			250			400
Model			FAM5-250L	FAM5-250M	FAM5-250H	FAM5-400L	FAM5-400M	FAM5-400H
Pole			3, 4			3.4
Rated current			100, 125, 140, 160, 180, 200, 225, 250			250, 315, 350, 400
Rated voltage			AC400V			AC400V
Rated insulation voltage			AC1000V			AC1000V
Short circuit breaking capacity		AC400V	50/50	65/65	100/85	65/65	75/75	100/85
Number of operating cycles		ON	3000			2000
		OFF	7000			4000
Overall dimension		a	105	140		140	184
	C	b	165			257
		c	68			103
		ca	90			155
Weight			1.9	2.1		5.5	5.7
Electric operating device			●			●
External drive operating handle			●			●
Automatic tripping device			Self heating electromagnetic type			Self heating electromagnetic type

Frame current			630			800
Model			FAM5-630L	FAM5-630M	FAM5-630H	FAM5-800L	FAM5-800M	FAM5-800H
Pole			3, 4			3.4
Rated current			400, 500, 630			630, 700, 800
Rated voltage			AC400V			AC400V
Rated insulation voltage			AC1000V			AC1000V
lcu/1cs Short circuit breaking capacity		AC400V	65/65	75/75	100/85	75/75	85/85	120/100
Number of operating cycles		ON	2000			1500
		OFF	4000			4000
Overall dimension		a	140	184		210	280
	C	b	257			275
		c	103			103
		ca	155			155
Weight			5.5	5.7		9.5	12.5
Electric operating device			●			●
External drive operating handle			●			●
Automatic tripping device			Self heating electromagnetic type			Self heating electromagnetic type

Frame current		63		160
Model		63L	63M	160L	160M	160H
Pole		3, 4		3, 4
Rated current		10, 16, 20, 32, 40, 50, 63		10, 16, 20, 32, 40, 50, 63, 80, 100, 125, 140, 160
Rated voltage		AC400V		AC400V
Icu/Ics Short circuit breaking capacity	AC400V	35/35	50/50	50/50	65/65	100/85
Number of operating cycles	ON	6000		3000
	OFF	9000		7000
Overall dimension	a	75	100	90	120
	b	130		155
	c	68		68
	ca	90		90
Weight		0.65	0.8	1.4	1.5
Electric operating device		●		●
External drive operating handle		●		●
Automatic tripping device		Self heating electromagnetic type		Thermal electromagnetic type

Frame current			250			400
Model			FAM5-250L	FAM5-250M	FAM5-250H	FAM5-400L	FAM5-400M	FAM5-400H
Pole			3, 4			3.4
Rated current			100, 125, 140, 160, 180, 200, 225, 250			250, 315, 350, 400
Rated voltage			AC400V			AC400V
Rated insulation voltage			AC1000V			AC1000V
Short circuit breaking capacity		AC400V	50/50	65/65	100/85	65/65	75/75	100/85
Number of operating cycles		ON	3000			2000
		OFF	7000			4000
Overall dimension		a	105	140		140	184
	C	b	165			257
		c	68			103
		ca	90			155
Weight			1.9	2.1		5.5	5.7
Electric operating device			●			●
External drive operating handle			●			●
Automatic tripping device			Self heating electromagnetic type			Self heating electromagnetic type
