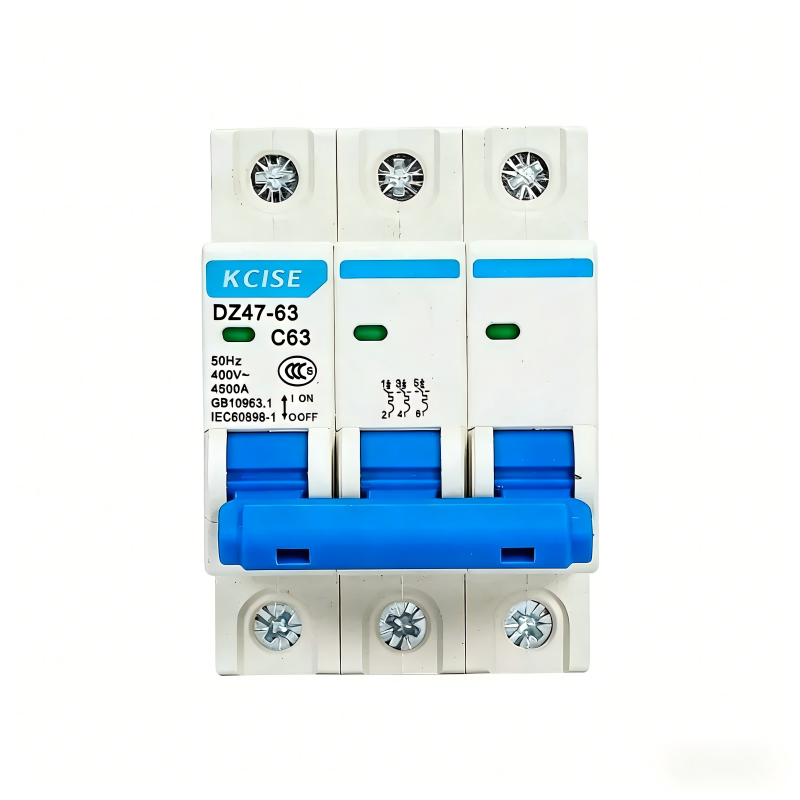

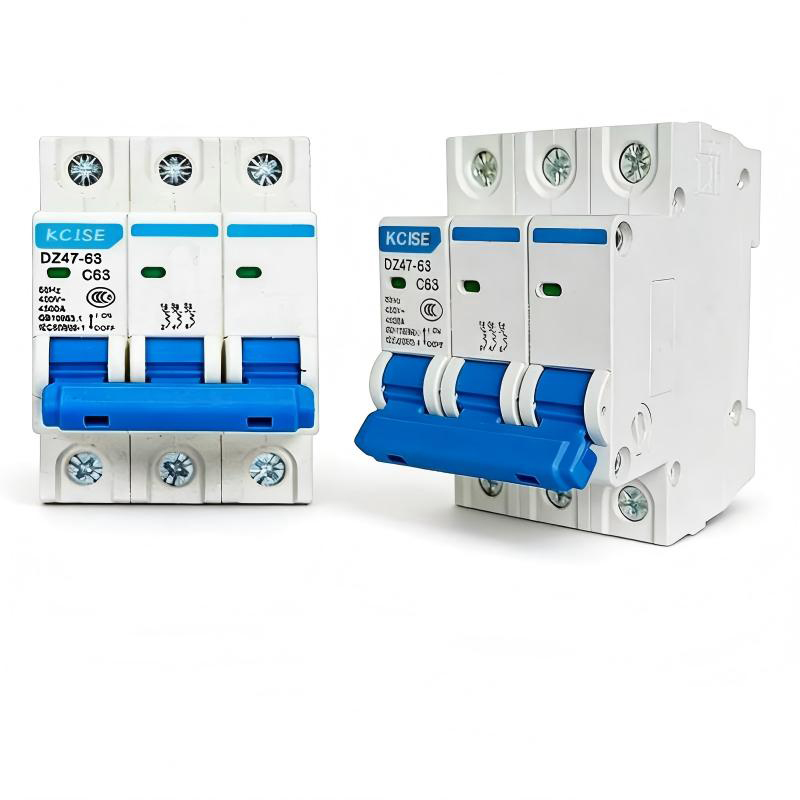

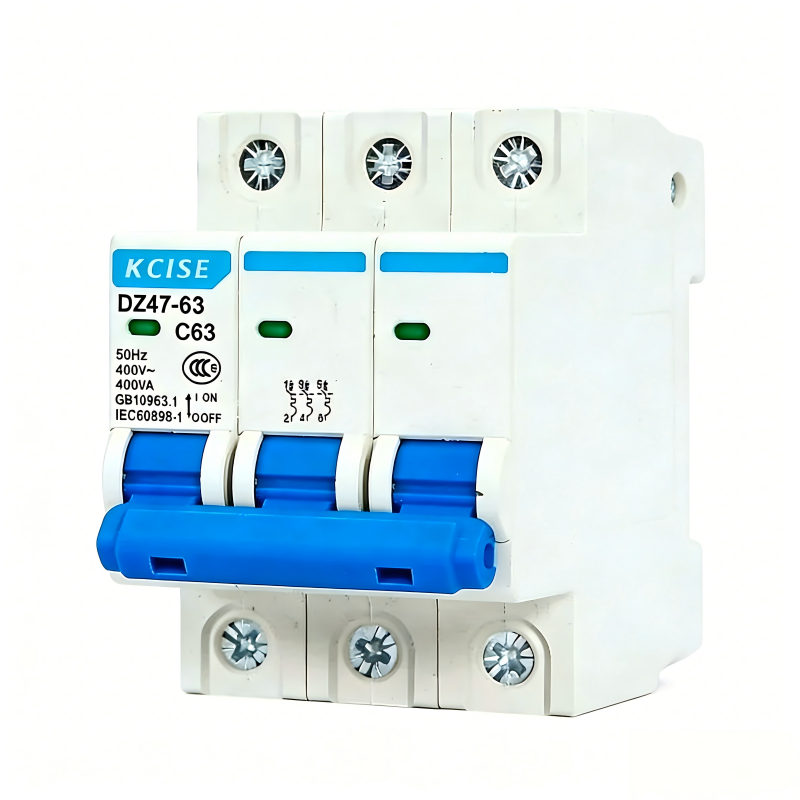

DZ47-63-3P
KCISE
| Current: | |
|---|---|
| Quantity: | |
| Place of Origin | WENZHOU | brand | KCISE |
|---|---|---|---|
| Pole Number | 3P | Breaking Capacity | 22-55KA（KA） |
| 极数 | 3P | Instantaneous tripping characteristic | C |
| rated current of tripper | 63A | rated voltage | 400V（V） |
| residual current tripper type | C ,D | residual current type | C，D |
| residual operating current | 30mA | residual operating time | 0.1S |
| mechanical life | 100000 times | switch width | 18mm |
| frame current | 63A（A） | rated impulse voltage | 3000V |
| operation mode | manual operation | tripping mode | overcurrent tripper |
| characteristic | ordinary type | protection type | tripper protection |
| application scenario | terminal power distribution | wiring mode | front panel wiring |
| model | DZ47-63/1P 6A,DZ47-63/1P 10A,DZ47-63/1P 16A,DZ47-63/1P 20A,DZ47-63/1P 25A,DZ47-63/1P 32A,DZ47-63/1P 40A,DZ47-63/1P 50A,DZ47-63/1P 63A | series | DZ47-63 |
| product certification | CCC | width | 18（mm） |
| purpose | residual current protection | minimum packaging quantity | 1piece |
| shell cover | white shell/transparent | 3C rated voltage range | AC rated voltage 1500V and below |
| structure type | molded case circuit breaker | arc extinguishing medium | air type |
SIZE(CM) | 8*5.4*7.5 | ||
Product Overview ：
Key Parameter Highlights：
High Breaking Capacity — Rated 6kA (some models up to 10kA), safely interrupts high fault currents
C Curve Tripping Characteristic — Best balance for household and general commercial use (5–10×In magnetic trip)
3 Pole Design (3P) — Perfect for three-phase circuits, balanced load protection
DIN Rail Mounting — 35mm standard rail installation, quick and easy to install/replace
Flame-retardant & High-strength Housing — Made of premium PC/ABS material, anti-aging, high insulation
Visual Trip Indicator — Red/green position clearly shows ON/OFF/Tripped status
Main Functions and Advantages:
Dual Protection: Thermal-magnetic tripping (overload delay + short-circuit instantaneous tripping) quickly and reliably interrupts fault current.
Contact Status Indication: Clearly displays ON/OFF/TRIP positions for quick troubleshooting.

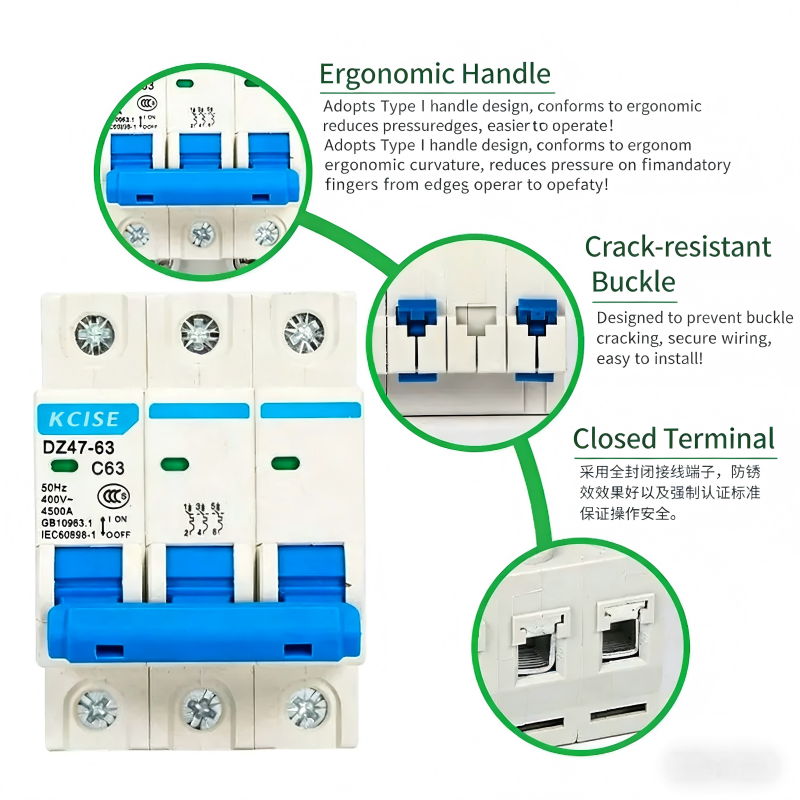

Comfortable Handle Operation: Curved design, non-slip and labor-saving, supports padlock function (for easy maintenance and safety).
Easy Wiring: Terminals can connect to rigid/flexible wires, maximum wiring cross-section 25mm².
Compact Size: Only 18mm wide, perfectly fits modern small distribution boxes.
Wide Applications: Home lighting, socket circuits, air conditioners, water heaters, photovoltaic grid connection, small motor control, main/branch protection in distribution boxes, etc.
