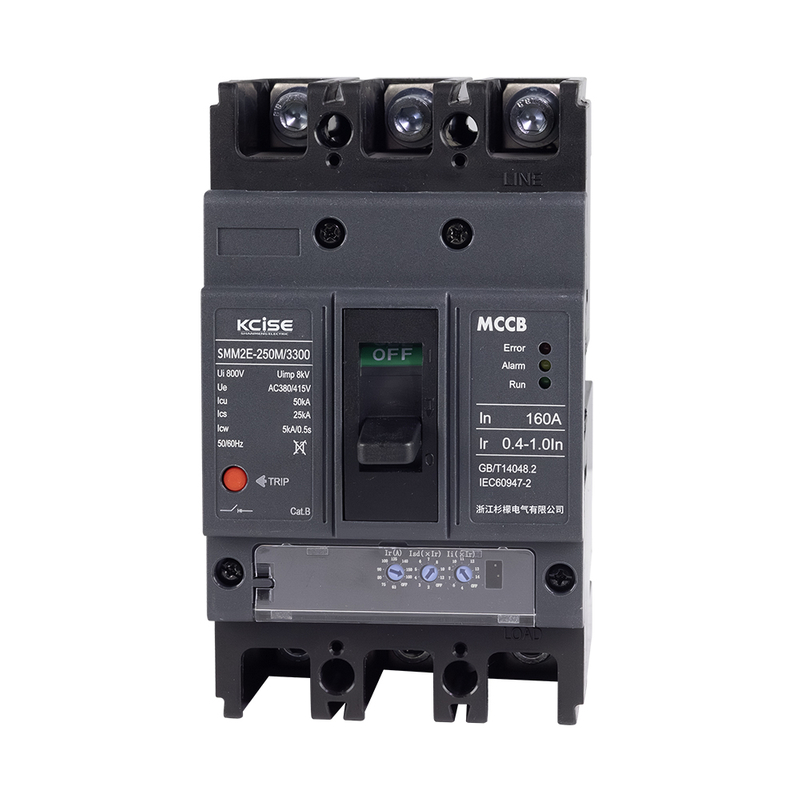

Manufacturer of The SMM2E Intelligent Type Residual Current Circuit Breaker (RCCB) with A Rated Current of 125A200A250A400A 630A.

Manufacturer of The SMM2E Intelligent Type Residual Current Circuit Breaker (RCCB) with A Rated Current of 125A200A250A400A 630A.

Intelligent Residual Current Circuit Breaker (RCCB) is an electrical switch device used to protect electrical equipment and personnel safety. It can monitor the leakage current in the circuit, and once the leakage current exceeds the set value, it will automatically cut off the circuit to prevent leakage accidents. Intelligent RCCBs typically have additional functions such as overload protection, short circuit protection, and remote monitoring, which can improve the safety and reliability of electrical systems. This device is widely used in residential, commercial, and industrial sectors, and is an essential component of modern electrical systems.

Model:
SMM2E-250M/3300
Brand:
KCISE
Code:
SMM2E-250M/3300

Quantity:
Availability:





Inquire Add to Basket

Technical parameter

Model		63L	63M	160L	160M	160H
Pole		3, 4		3, 4
Rated current		10, 16, 20, 32, 40, 50, 63		10, 16, 20, 32, 40, 50, 63, 80, 100, 125, 140, 160
Rated voltage		AC400V		AC400V
Rated insulation voltage		AC1000V		AC1000V
Icu/Ics Short circuit breaking capacity	AC400V	35/35	50/50	50/50	65/65	100/85
Number of operating cycles	ON	6000		3000
	OFF	9000		7000
Overall dimension	a	75	100	90	120
	b	130		155
	c	68		68
	ca	90		90
Weight		0.65	0.8	1.4	1.5
Electric operating device		●		●
External drive operating handle		●		●
Automatic tripping device		Self heating electromagnetic type		Thermal electromagnetic type

(A) Frame current			250			400
Model			FAM5-250L	FAM5-250M	FAM5-250H	FAM5-400L	FAM5-400M	FAM5-400H
Pole			3, 4			3.4
(A) Rated current			100, 125, 140, 160, 180, 200, 225, 250			250, 315, 350, 400
(V) Rated voltage			AC400V			AC400V
(V) Rated insulation voltage			AC1000V			AC1000V
(KA)Icu/Ics Short circuit breaking capacity		AC400V	50/50	65/65	100/85	65/65	75/75	100/85
Number of operating cycles		ON	3000			2000
		OFF	7000			4000
Overall dimension		a	105	140		140	184
	C	b	165			257
		c	68			103
		ca	90			155
Weight(KG)			1.9	2.1		5.5	5.7
Electric operating device			●			●
External drive operating handle			●			●
Automatic tripping device			Self heating electromagnetic type			Self heating electromagnetic type

(A) Frame current			630			800
Model			FAM5-630L	FAM5-630M	FAM5-630H	FAM5-800L	FAM5-800M	FAM5-800H
Pole			3, 4			3.4
(A) Rated current			400, 500, 630			630, 700, 800
(V) Rated voltage			AC400V			AC400V
(V) Rated insulation voltage			AC1000V			AC1000V
(KA)lcu/1cs Short circuit breaking capacity		AC400V	65/65	75/75	100/85	75/75	85/85	120/100
Number of operating cycles		ON	2000			1500
		OFF	4000			4000
(mm) Overall dimension		a	140	184		210	280
	C	b	257			275
		c	103			103
		ca	155			155
(kg) Weight			5.5	5.7		9.5	12.5
(MD) Electric operating device			●			●
External drive operating handle			●			●
Automatic tripping device			Self heating electromagnetic type			Self heating electromagnetic type

Residual Current Circuit Breaker RCCB Air Circuit Breaker Intelligent Residual Current Circuit Breaker
