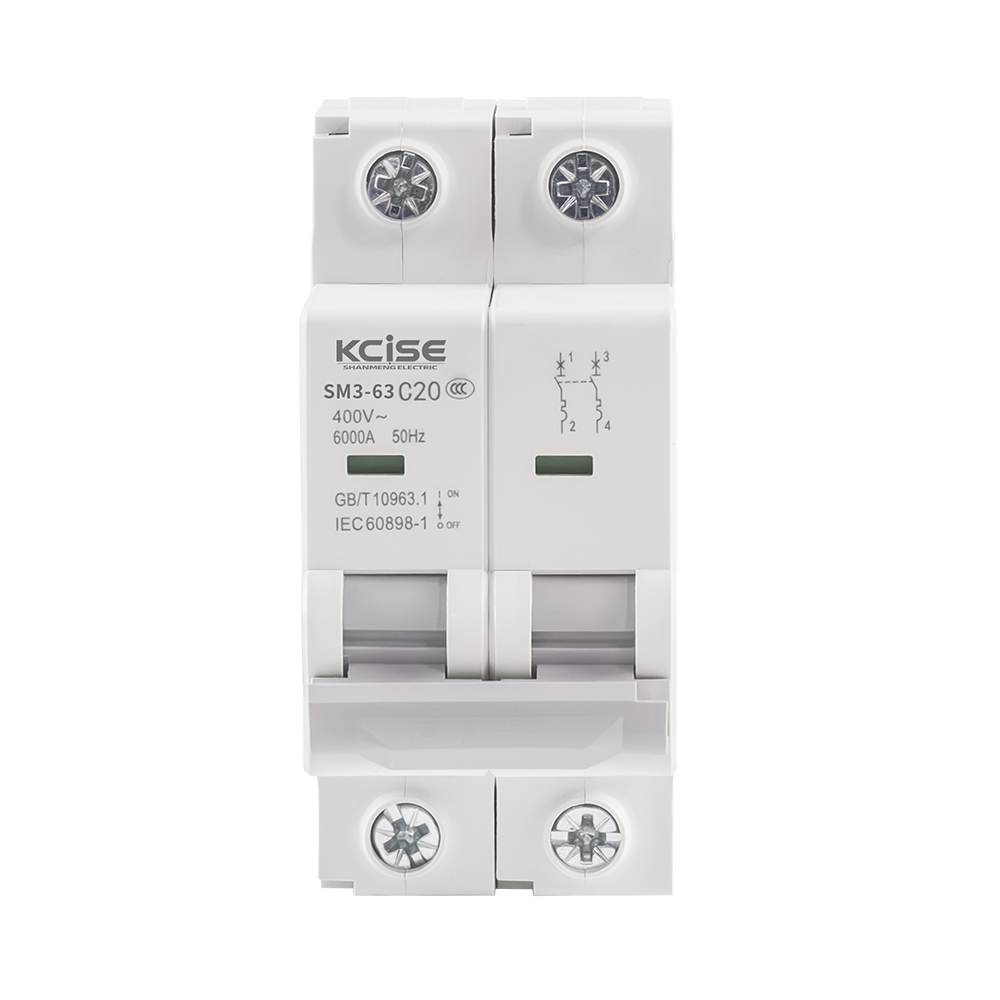

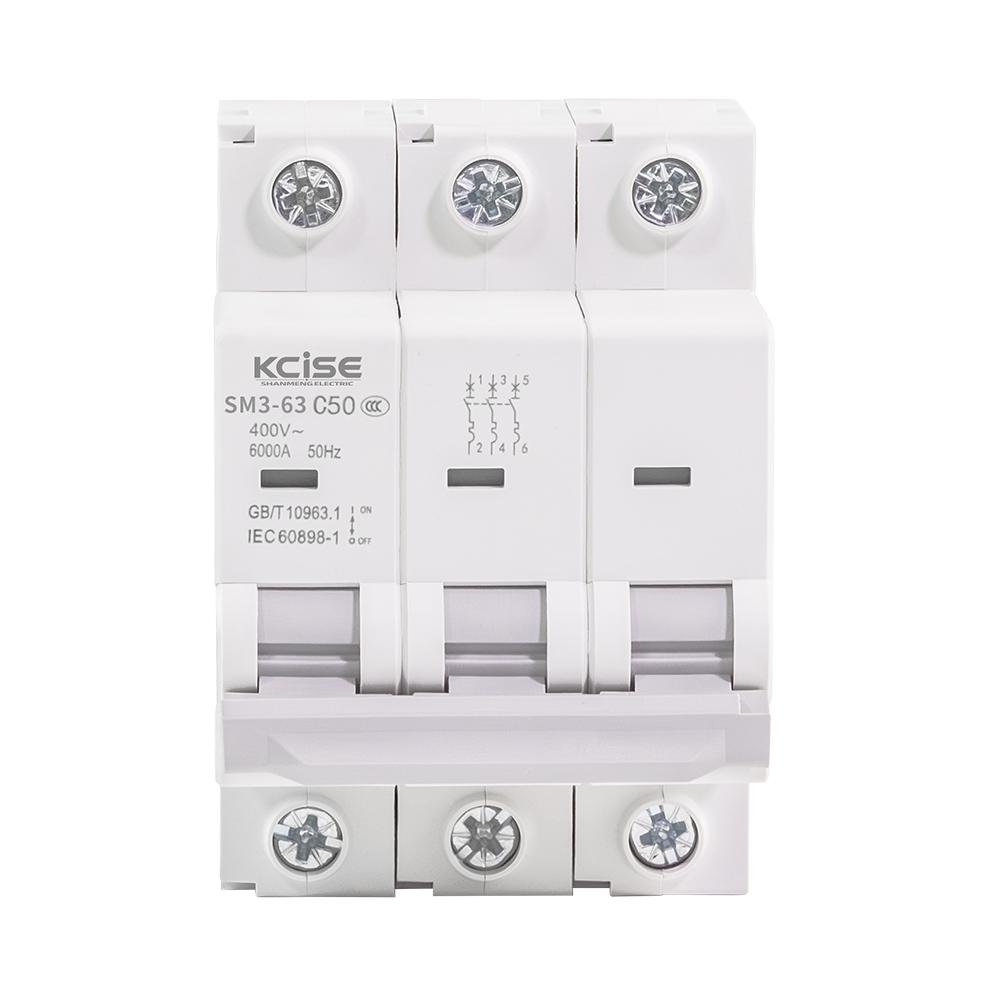

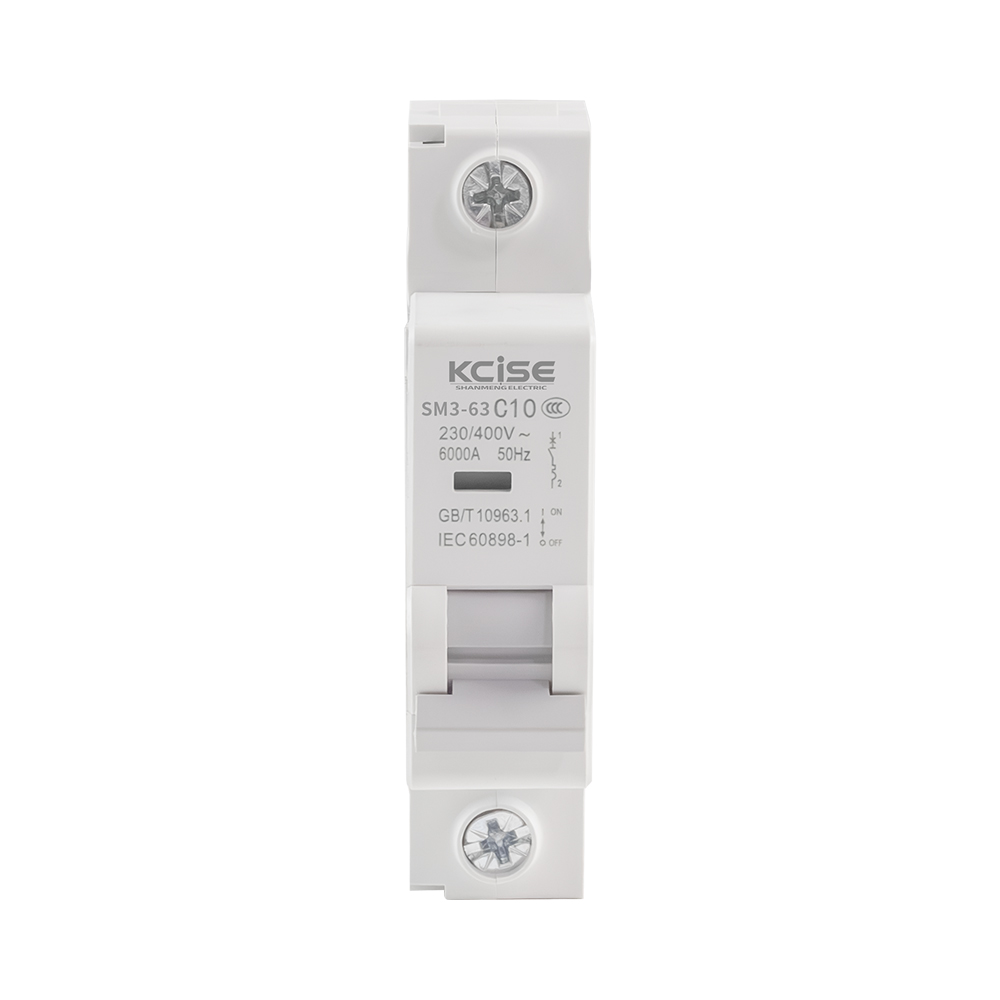

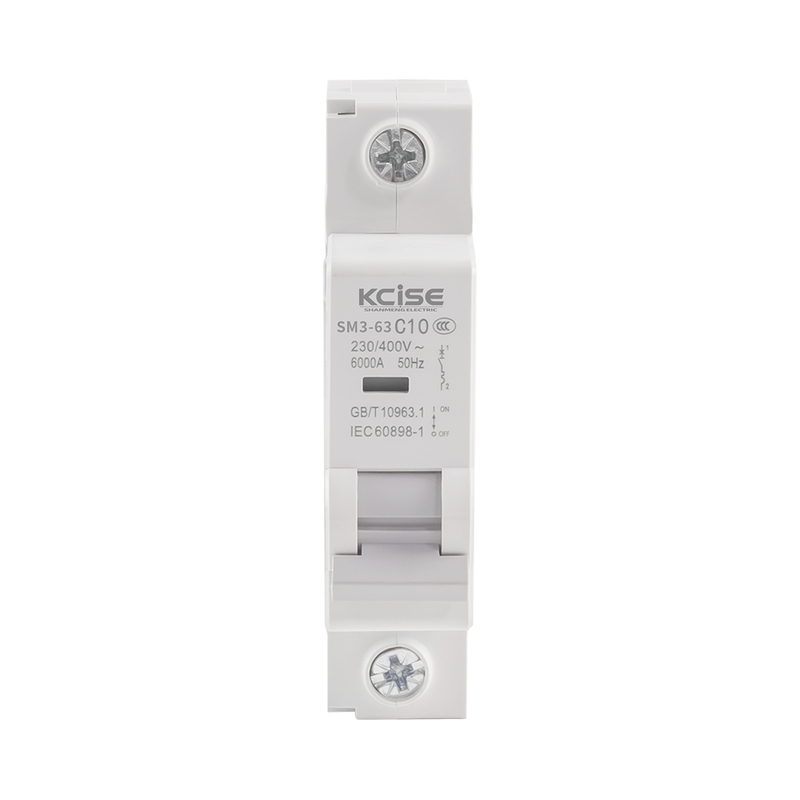

Pull-up terminal SM3-63 miniature circuit breaker from 1 pole to 3 pole

Pull-up terminal MCB SM3-63 miniature circuit breaker 1P 2P 3P Overload and Short Circuit Protection

Pull-up terminal MCB SM3-63 miniature circuit breaker 1P 2P 3P Overload and Short Circuit Protection

Meet the standard: GB / T10963.1

Rated working voltage Ue: AC230V / 400V (1P), AC400V (2P, 3P, 4P) 50 / 60Hz

Breaking capacity: 6000A

Mechanical and electrical life: 20000 times

Ambient temperature: Open installation: - 25 ℃ ~ + 50 ℃ ; Closed installation: - 25 ℃ ~ + 40 ℃

Damp heat resistance: Class 2 (95% relative humidity at 55 ℃ )

Wiring capacity: 1-25sq

Model:
SM3-63
Brand:
KCISE
Code:
SM3-63

Quantity:
Availability:





Inquire Add to Basket

SM3-63 miniature circuit breaker

SM3-63 miniature circuit breaker is widely used in power distribution systems of industrial, commercial and civil buildings as short circuit and overload protection of electrical lines or equipment.

Note: the main difference between this model and other type is that the wiring mode of the terminal is different. This product is a pull-up terminal.

Miniature Circuit Breaker Circuit Breaker Breaker SM3-63 pull-up terminal breaker MCB 1P 2P 3P 1-63A Short Circuit Protection Overload Protection

The characteristic data shall comply with GB/T10963.1	Rated working voltage	1P	2P	3P	4P
	ln A	Model

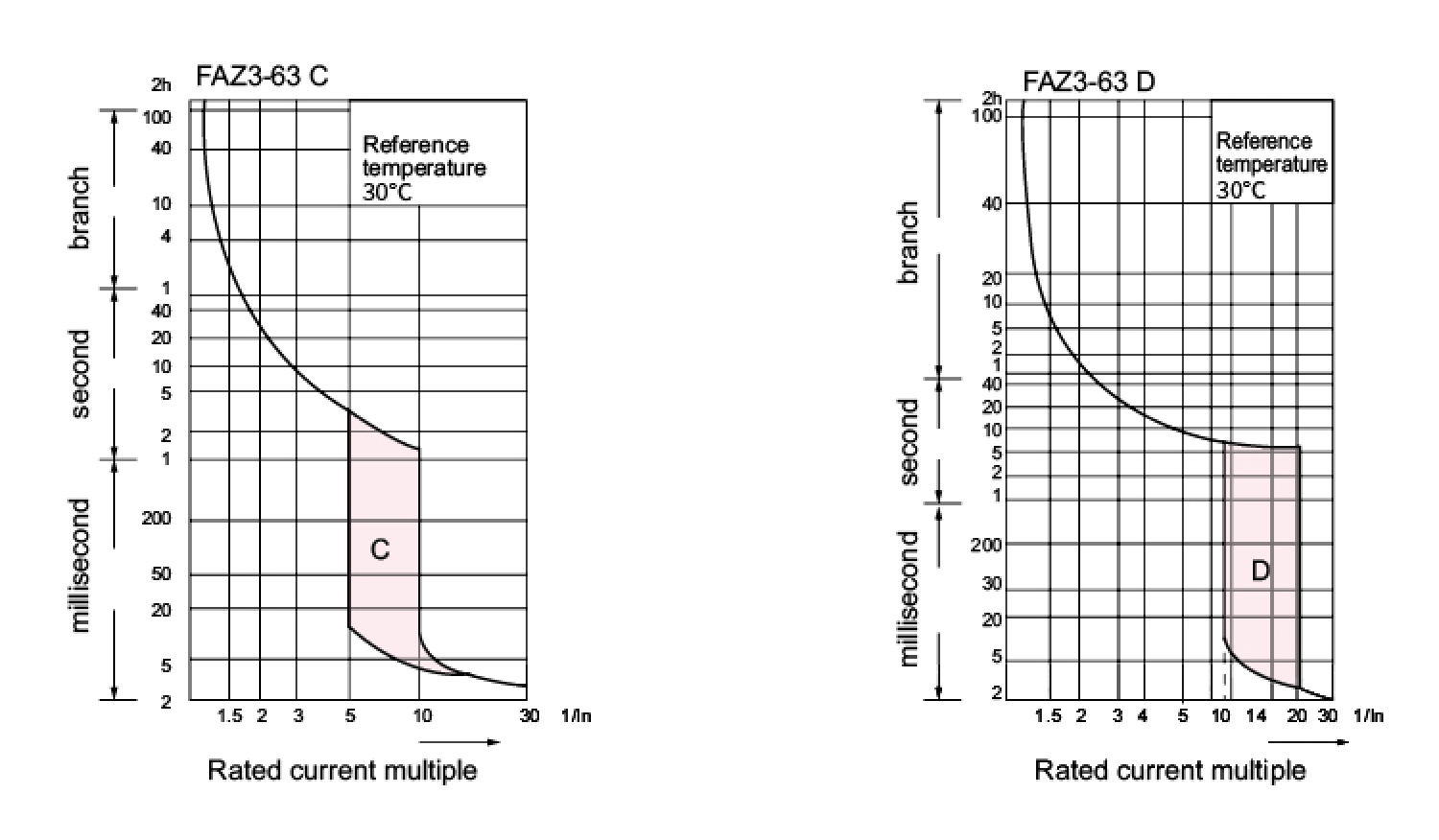

◎ Instantaneous tripping current: SM3-63C type (5-10) x In ◎ Purpose: SM3-63C is applicable to lighting distribution system and some motor distribution systems to protect short circuit and overload of lines. ◎ Control ◎ DC application ◎ Isolation	1	SM3-63 C1	SM3-63 C1-2	SM3-63 C1-3	SM3-63 C1-4
	2	SM3-63 C2	SM3-63 C2-2	SM3-63 C2-3	SM3-63 C2-4
	3	SM3-63 C3	SM3-63 C3-2	SM3-63 C3-3	SM3-63 C3-4
	4	SM3-63 C4	SM3-63 C4-2	SM3-63 C4-3	SM3-63 C4-4
	5	SM3-63 C5	SM3-63 C5-2	SM3-63 C5-3	SM3-63 C5-4
	6	SM3-63 C6	SM3-63 C6-2	SM3-63 C6-3	SM3-63 C6-4
	10	SM3-63 C10	SM3-63 C10-2	SM3-63 C10-3	SM3-63 C10-4
	16	SM3-63 C16	SM3-63 C16-2	SM3-63 C16-3	SM3-63 C16-4
	20	SM3-63 C20	SM3-63 C20-2	SM3-63 C20-3	SM3-63 C20-4
	25	SM3-63 C25	SM3-63 C25-2	SM3-63 C25-3	SM3-63 C25-4
	32	SM3-63 C32	SM3-63 C32-2	SM3-63 C32-3	SM3-63 C32-4
	40	SM3-63 C40	SM3-63 C40-2	SM3-63 C40-3	SM3-63 C40-4
	50	SM3-63 C50	SM3-63 C50-2	SM3-63 C50-3	SM3-63 C50-4
	63	SM3-63 C63	SM3-63 C63-2	SM3-63 C63-3	SM3-63 C63-4

The characteristic data shall comply with GB/T10963.1	Rated working voltage	1P	2P	3P	4P
	ln A	Model
◎ Instantaneous tripping current: SM3-63C type (5-10) x In ◎ Purpose: SM3-63C is applicable to lighting distribution system and some motor distribution systems to protect short circuit and overload of lines. ◎ Control ◎ DC application ◎ Isolation	1	SM3-63 C1	SM3-63 C1-2	SM3-63 C1-3	SM3-63 C1-4
	2	SM3-63 C2	SM3-63 C2-2	SM3-63 C2-3	SM3-63 C2-4
	3	SM3-63 C3	SM3-63 C3-2	SM3-63 C3-3	SM3-63 C3-4
	4	SM3-63 C4	SM3-63 C4-2	SM3-63 C4-3	SM3-63 C4-4
	5	SM3-63 C5	SM3-63 C5-2	SM3-63 C5-3	SM3-63 C5-4
	6	SM3-63 C6	SM3-63 C6-2	SM3-63 C6-3	SM3-63 C6-4
	10	SM3-63 C10	SM3-63 C10-2	SM3-63 C10-3	SM3-63 C10-4
	16	SM3-63 C16	SM3-63 C16-2	SM3-63 C16-3	SM3-63 C16-4
	20	SM3-63 C20	SM3-63 C20-2	SM3-63 C20-3	SM3-63 C20-4
	25	SM3-63 C25	SM3-63 C25-2	SM3-63 C25-3	SM3-63 C25-4
	32	SM3-63 C32	SM3-63 C32-2	SM3-63 C32-3	SM3-63 C32-4
	40	SM3-63 C40	SM3-63 C40-2	SM3-63 C40-3	SM3-63 C40-4
	50	SM3-63 C50	SM3-63 C50-2	SM3-63 C50-3	SM3-63 C50-4
	63	SM3-63 C63	SM3-63 C63-2	SM3-63 C63-3	SM3-63 C63-4
