Product Overview

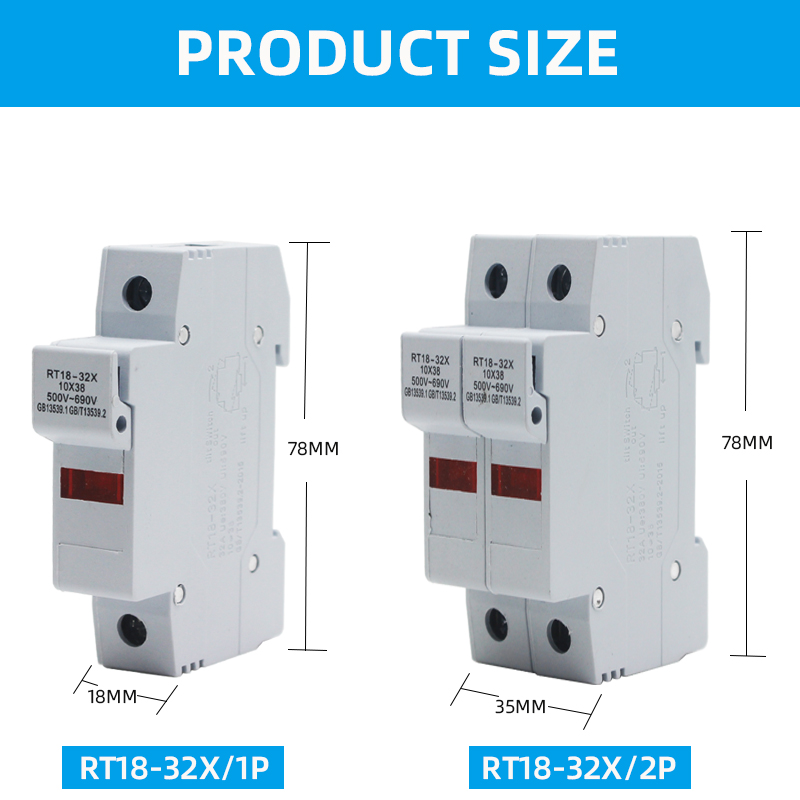

The RT18-32X Fuse Holder serves as a critical overcurrent protection component specifically engineered for solar photovoltaic (PV) systems and demanding low-voltage distribution networks. Functioning as a 1 Pole DIN Rail Fuse Holder equipped with an integrated Indicator Lamp, it is precision-calibrated exclusively to accommodate standard 10×38 mm fuses. This component delivers reliable short-circuit breaking capabilities and surge current suppression, safeguarding sensitive PV panels, battery storage banks, and combiner inverter rectification systems from unexpected electrical faults. Beyond solar applications, its versatile architecture perfectly adapts to industrial control cabinets and commercial electrical protection scenarios. Compliant with GB13539.1 and GB/T13539.2 Standards, this DIN Rail Type Fuse Holder ensures steadfast safety and compatibility across both industrial and residential installations. The tactile click upon securing the fuse and the solid, weighty feel of the housing reflect its industrial-grade craftsmanship, effectively protecting vital electrical infrastructure from catastrophic overcurrent damage.

Key Features & Benefits

Integrated Indicator Lamp for Instant Status Monitoring

The built-in LED Indicator Lamp provides immediate, intuitive visual feedback regarding circuit status. It remains brightly illuminated while the fuse is intact and safely conducting current, and instantly darkens the moment the fuse trips. This direct visual cue eliminates the tedious process of manual continuity testing with a multimeter. Facility managers and maintenance personnel can pinpoint faults at a glance, drastically reducing diagnostic labor and minimizing system downtime.

V2 Grade Flame Retardant Material for Enhanced Safety

Constructed with a high-strength, sturdy base and a V2 Grade Flame Retardant Material outer shell, the RT18-32X Fuse Holder offers exceptional resistance to elevated temperatures and actively prevents the propagation of electrical fires. The hard-wearing thermoplastic housing boasts remarkable mechanical impact resistance, ensuring physical stability even when subjected to the vibrations and thermal cycling typical of complex industrial environments.

35mm DIN Rail Mounting for Easy Installation

Engineered for optimized 35mm DIN Rail Mounting, this fuse holder features a specialized snap-on design and quick-connect terminals that facilitate completely tool-free installation. The strong spring clip mechanism allows technicians to securely lock the unit onto standard DIN rails with a simple push. This streamlined assembly process significantly accelerates batch installations for panel builders and electrical cabinet manufacturers, saving critical labor hours during large-scale deployments.

Advanced Internal Core for Superior Conductivity

At the heart of the holder lies a highly conductive internal core rated for up to 50A, paired with robust internal spring clips. This precision-engineered contact mechanism ensures the 10×38 mm fuse remains tightly secured, maintaining optimal surface contact. By minimizing contact resistance, the design effectively mitigates the risk of dangerous temperature rises during continuous operation under heavy electrical loads.

Wide Rated Current & Voltage Range

Supporting a Rated Current spanning from 1A to 32A and a Rated Voltage of 500V~690V AC, this versatile 10×38 mm Fuse Holder adapts effortlessly to a broad spectrum of system architectures. Whether deployed in compact residential setups or expansive industrial arrays, it handles diverse electrical demands with consistent precision.

High Rated Breaking Capacity of 20KA

Featuring a formidable Rated Breaking Capacity of 20KA, the device aggressively interrupts massive surge currents and sudden short-circuit faults. This rapid response acts as an impenetrable barrier, shielding expensive PV inverters, charge controllers, and battery banks from irreversible internal damage.

Our Service Advantages

In-Stock Availability

We maintain extensive, climate-controlled inventories of the RT18-32X Fuse Holder to guarantee rapid order fulfillment. Recognizing that project timelines are often rigid, most standard requests are processed and shipped within 24 hours. This logistical efficiency prevents costly delays in your PV array construction or industrial panel assembly schedules.

Rigorous Factory Testing & Quality Control

Consistency is paramount for large-scale procurement. Every production batch undergoes stringent evaluation, including comprehensive plug-in life cycle testing, rigorous temperature rise assessments under maximum load, and high-voltage withstand tests. This unwavering commitment to quality control guarantees exceptional yield rates and identical performance characteristics across thousands of units.

Free Technical Consultation

Our dedicated engineering team delivers personalized Technical Consultation to assist procurement managers and system designers in selecting the precise configuration (1P/2P/3P/4P) dictated by your specific current and voltage parameters. Furthermore, all 1 Pole DIN Rail Fuse Holder units are backed by a comprehensive 2-Year Warranty, protecting against manufacturing anomalies and securing long-term operational confidence.

Customization Support

We provide tailored labeling, laser engraving, and specialized packaging solutions for the 10×38 mm Fuse Holder. These bespoke services enable your proprietary brand to align with regional compliance mandates while presenting a cohesive, professional aesthetic in competitive global markets. Partnering with elite logistics networks, we facilitate Global Shipping to over 50 countries, complete with real-time transit tracking.

FAQs

What fuse size works with the RT18-32X Fuse Holder?

The RT18-32X Fuse Holder is precisely calibrated exclusively for standard 10×38 mm cylindrical fuses. The internal spring clips are tensioned specifically for this form factor. Attempting to force alternative dimensions into the carrier will compromise the contact surface, leading to severe electrical hazards, arcing, or catastrophic equipment failure.

Can this fuse holder be used outside PV systems?

Absolutely. While engineered with solar arrays in mind, its robust construction and high breaking capacity make it an exceptional choice for industrial control cabinets, low-voltage distribution panels, and heavy-duty commercial electrical protection scenarios. As long as the circuit's voltage and current parameters align with its specifications, it delivers uncompromising defense.

How does the Indicator Lamp function?

The integrated Indicator Lamp draws minimal power directly from the active circuit. It remains brightly illuminated to confirm the fuse is intact and current is flowing normally. The instant the fuse blows due to an overcurrent event, the circuit is broken, and the lamp extinguishes. This provides maintenance crews with a clear, immediate visual signal for rapid fault isolation.

Is the RT18-32X Fuse Holder internationally compliant?

Yes, the component strictly adheres to GB13539.1 and GB/T13539.2 Standards. These certifications ensure it meets rigorous global safety benchmarks for electrical components utilized in sensitive PV systems and industrial power distribution networks.

What’s the operating temperature range?

The device maintains peak operational integrity across a broad thermal spectrum, functioning flawlessly from -25°C up to +70°C. The V2 flame-retardant housing resists deformation under heat, making it highly dependable for both enclosed indoor electrical cabinets and adequately sheltered outdoor PV installations exposed to fluctuating weather conditions.
