Precise electrical protection serves as the primary defense mechanism in safely interrupting a closed-loop electrical circuit. Without reliable fault clearing, facilities face catastrophic equipment failure, operational downtime, and severe safety hazards. The core engineering challenge lies in matching the exact protection device to the specific load and fault characteristics of the network. Specifying the wrong protection system carries heavy operational risks. Over-specifying drains capital budgets and complicates panel designs. Under-specifying leads to nuisance tripping, inadequate fault clearing, compliance violations, and dangerous arc flash hazards.

Engineers require a rigorous evaluation framework to match specific breaker architectures to exact industrial, commercial, and residential operational requirements. Proper specification ensures the source of electricity is reliably isolated during a fault condition while maintaining power to unaffected branches. By analyzing short-circuit capacities, load types, and environmental constraints, facility managers can deploy protection systems that ensure continuous operation and strict safety compliance.

• Application-Specific Matching: Selecting the correct breaker requires aligning the device’s interrupting rating and trip characteristics with the facility's available short-circuit current, continuous signal levels, and load types.

• Advanced Protection Integration: Modern facilities increasingly rely on an Intelligent Residual Current Circuit Breaker or electronic trip units to enable predictive maintenance and precise fault diagnostics.

• Coordination is Critical: Proper system design mandates selective coordination between upstream and downstream breakers to isolate faults without shutting down the entire electrical network's return path.

• Lifecycle Cost vs. Initial CapEx: Evaluating lifecycle investment must factor in maintenance requirements, physical footprint, and integration capabilities with existing Building Management Systems (BMS).




Success Criteria for Specifying a Circuit Breaker

Interrupting Capacity and Fault Current Analysis

Calculating the maximum available fault current at the installation point is the foundational step in specifying any circuit breaker. This calculation determines the maximum destructive energy the device must safely contain and interrupt. Engineers perform short-circuit studies to evaluate the infinite bus capacity from the utility, factoring in transformer impedances, cable lengths, and motor contributions. The resulting value dictates the required Kilo-Ampere Interrupting Capacity (kAIC) of the protection device.

A clear distinction exists between the continuous current rating and the short-circuit interrupting capacity. The continuous rating, measured in Amperes, defines the maximum current the device can carry continuously without exceeding thermal limits. The kAIC rating defines the maximum fault current the device can safely clear without sustaining mechanical damage or failing to break the circuit loop. Specifying a device with an insufficient interrupting rating invites catastrophic failure. When a fault exceeds the kAIC rating, the massive electromagnetic forces and thermal energy can cause the internal contacts to weld closed. This failure prevents the device from isolating the power source, leading to switchgear fires, melted busbars, and severe arc flash incidents.

Field technicians must also account for the X/R ratio of the electrical system when evaluating interrupting capacity. The X/R ratio represents the ratio of reactance to resistance in the circuit. A high X/R ratio indicates a highly inductive circuit, which produces a larger asymmetrical fault current during the first few cycles of a short circuit. Protection devices must be rated to handle this peak asymmetrical current. If the system X/R ratio exceeds the test parameters of the standard device, engineers must specify a unit with a higher kAIC rating to ensure safe fault clearing under worst-case asymmetrical conditions.

Environmental and Operational Constraints

Environmental factors heavily influence the operational reliability and thermal performance of electrical protection devices. Ambient temperature directly impacts thermal-magnetic trip units. Standard devices are calibrated for 40°C environments. Installing them in hotter environments, such as outdoor enclosures in direct sunlight or poorly ventilated boiler rooms, requires derating the continuous current carrying capacity to prevent nuisance tripping. The bimetallic strip inside the unit will deflect prematurely if the ambient heat is not accounted for during the design phase.

Altitude also degrades performance. Above 2000 meters, the air density decreases. Thinner air lowers the dielectric strength, making it harder for the device to extinguish the electrical arc during a fault. It also reduces cooling efficiency, requiring further thermal derating. High humidity and corrosive atmospheres demand specialized enclosures and conformal-coated internal electronics to prevent premature degradation of the trip mechanisms and internal current transformers.

Load characteristics dictate the selection of the appropriate trip curve. Different loads exhibit distinct inrush current profiles upon startup. Selecting the wrong curve results in immediate nuisance tripping when a machine powers on. Engineers utilize specific curves to match these profiles. Curve B (3-5x In) is designed for resistive loads, commercial lighting, and long cable runs with low short-circuit currents. Curve C (5-10x In) serves as the standard for general commercial applications, small motors, and inductive loads. Curve D (10-20x In) is specified for high inrush applications like large transformers, heavy industrial motors, and welding equipment. Curve K (8-12x In) is optimized for motor protection, providing a sensitive thermal response to prevent motor winding damage. Curve Z (2-3x In) is highly sensitive, used for protecting sensitive electronic circuits and analog control panels.

Core Circuit Breaker Categories and Technical Architectures

Miniature Circuit Breakers (MCBs) for Sub-Circuit Protection

Miniature devices provide essential sub-circuit protection in low-voltage applications. They typically operate at continuous currents up to 100A and feature lower interrupting capacities, usually capping at 10kA or 15kA. These units utilize a compact, modular design intended for DIN rail mounting within distribution boards. The internal architecture relies on a bimetallic strip for thermal overload protection and a solenoid for instantaneous magnetic short-circuit tripping. When a short circuit occurs, the solenoid generates a magnetic field that pulls the latch mechanism, opening the contacts in milliseconds.

Common applications include residential load centers, commercial lighting circuits, analog control circuits, and low-power continuous signal panels. They excel in terminal distribution where fault currents are naturally limited by upstream cable impedance. However, they possess distinct limitations. They lack adjustable trip settings, meaning engineers cannot fine-tune the protection curve to specific load variations. They offer limited integration capabilities, lacking the communication modules and advanced telemetry found in larger protection devices. Field technicians treat these units as consumable items; when an MCB fails or sustains a severe fault, it is replaced entirely rather than serviced.

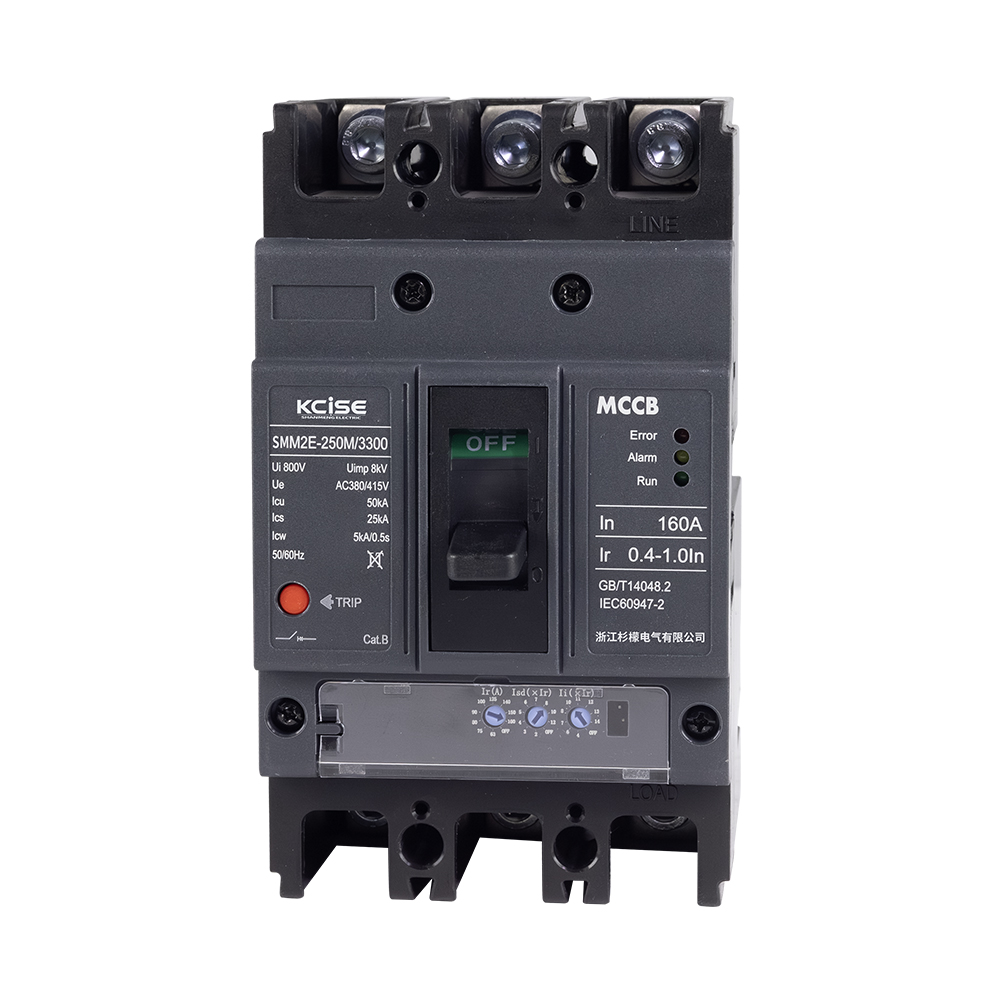

Leakage Molded Case Circuit Breaker Applications

A Leakage Molded Case Circuit Breaker combines overcurrent, short-circuit, and earth leakage protection within a single compact housing. This integrated architecture eliminates the need for separate core-balance current transformers and external earth leakage relays. The device utilizes an internal zero-sequence current transformer to monitor the vector sum of the phase and neutral currents. Under normal operating conditions, the current flowing out to the load equals the current returning, resulting in a vector sum of zero. If the sum deviates from zero, indicating a leakage to ground, the electronic trip unit immediately opens the contacts.

These devices dominate heavy commercial distribution, industrial motor control centers, and environments requiring integrated ground fault equipment protection. They are essential in mining, construction sites, and wet industrial environments where insulation degradation poses a constant threat. The primary advantage lies in their adjustable trip settings. Engineers can modify both the thermal continuous current and the magnetic instantaneous pickup. This adjustability allows for precise load matching, reliable closed-loop interruption, and effective coordination with downstream miniature devices. Installation requires careful attention to neutral wiring; bypassing the internal zero-sequence CT with the neutral conductor will cause immediate nuisance tripping upon load application.

Universal Air Circuit Breaker for Main Distribution

A Universal Air Circuit Breaker provides the robust construction necessary for managing massive electrical loads. Designed for high continuous currents ranging from 400A up to 6300A, they boast massive short-circuit capacities often exceeding 100kA. These units utilize ambient air as the dielectric medium to extinguish the electrical arc generated during fault interruption. They feature heavy-duty contact assemblies, powerful stored-energy operating mechanisms, and extensive electronic trip unit configurations. The stored-energy mechanism uses heavy springs charged by an internal electric motor, allowing for rapid closing and opening independent of the operator's physical speed.

These heavy-duty units serve as the primary protection in main switchgear, generator incomers, and heavy industrial plant distribution. They are tasked with isolating massive sources of electricity at the service entrance. Maintenance requires specific protocols, especially for draw-out designs. The draw-out chassis allows technicians to rack the unit out of the live busbar into three distinct positions: connected, test, and disconnected. In the test position, the primary power contacts are separated, but the secondary control wiring remains engaged, allowing technicians to verify trip unit functionality without energizing the main bus. The mechanics of fault clearing rely on large arc chutes containing metallic splitter plates. These plates divide, cool, and extinguish the arc plasma in open-air fault clearing scenarios, preventing the arc from jumping between phases.

Intelligent Residual Current Circuit Breaker Systems

An Intelligent Residual Current Circuit Breaker represents the convergence of electrical protection and digital telemetry. These systems detect micro-ampere leakage currents that indicate early-stage insulation failure. Unlike standard passive devices, intelligent variants incorporate microprocessors to analyze leakage waveforms. They differentiate between transient harmless leakage, such as the capacitive charging current of long cable runs, and dangerous sustained faults. They also provide continuous data telemetry regarding power quality, voltage fluctuations, and harmonic distortion.

These advanced systems are deployed in critical environments like data centers, healthcare facilities, and automated manufacturing lines. In these settings, personnel safety and equipment monitoring are paramount. The integration of microprocessors enables real-time monitoring and remote tripping capabilities. Facility managers can track leakage current trends over time, allowing them to schedule predictive maintenance before a hard trip disrupts operations. Advanced models offer harmonic filtering algorithms to prevent nuisance tripping caused by the high-frequency noise generated by variable frequency drives and modern power electronics. By filtering out the 3rd, 5th, and 7th harmonics, the trip unit focuses solely on fundamental frequency leakage, ensuring reliable operation in highly non-linear load environments.

Evaluating Features to Operational Outcomes

Thermal-Magnetic vs. Electronic Trip Units

The choice between thermal-magnetic and electronic trip units dictates the precision of the electrical protection scheme. Traditional thermal-magnetic mechanisms rely on physical properties. A bimetallic strip bends under sustained overcurrent to provide thermal protection, while an electromagnet actuates during massive short circuits. These units are highly cost-effective, rugged, and reliable for standard resistive and inductive loads. Their trip curves are fixed or offer very limited adjustability, usually restricted to a single dial for the magnetic pickup threshold.

Electronic Trip Units (ETUs) utilize internal current transformers and microprocessors to analyze the current waveform. They offer unparalleled precision and adjustability. ETUs provide independent settings for Long-time, Short-time, Instantaneous, and Ground fault (LSIG) parameters. This granular control allows engineers to shape the trip curve exactly around the load's thermal damage curve, ensuring superior selective coordination across complex circuit paths. The Long-time setting protects against sustained overloads, the Short-time setting allows downstream devices to clear minor faults, the Instantaneous setting provides immediate clearing of massive short circuits, and the Ground fault setting protects against earth leakage.

Arc Flash Mitigation and Safety Compliance

Modern protection devices incorporate specific features designed to reduce arc flash incident energy. Zone Selective Interlocking (ZSI) connects upstream and downstream devices via a hardwired communication link. When a downstream device detects a fault, it sends a restraint signal to the upstream unit, telling it to wait and follow its programmed time delay. If the fault occurs between the two devices, no signal is sent, and the upstream unit trips instantaneously. This reduces the clearing time for localized faults within the switchgear without sacrificing system coordination.

Energy-Reducing Maintenance Switches (ERMS) provide another critical safety layer. Technicians activate the ERMS via a physical switch or digital command before opening a panel door. This temporarily lowers the instantaneous trip threshold to its absolute minimum setting, bypassing all programmed time delays. If an arc flash occurs while the technician is working, the device clears the fault instantly, drastically reducing the incident energy released. These features directly map to OSHA and NFPA 70E compliance requirements, ensuring facility safety and protecting personnel from severe burns, blast pressure, and shrapnel.

Integration with SCADA and Building Management Systems

Modern electrical distribution relies on data. Embedding communication protocols like Modbus RTU, IEC 61850, and Ethernet/IP into protection devices transforms them into intelligent network nodes. This integration allows Supervisory Control and Data Acquisition (SCADA) systems and Building Management Systems (BMS) to monitor the electrical infrastructure in real-time. Field wiring requires shielded twisted pair cables for serial communication or standard Cat6 for Ethernet, routed carefully away from high-voltage busbars to prevent electromagnetic interference.

Telemetry data provides immense operational value. Facility managers can monitor power quality, track energy consumption across different production lines, and analyze harmonic distortion. ETUs calculate contact wear based on the number of switching operations and the magnitude of interrupted fault currents. This wear indicator translates directly to reduced unplanned downtime. Maintenance teams can replace degrading units during scheduled outages rather than reacting to catastrophic failures during peak production hours. The BMS can also trigger automated load shedding routines if the main incomer approaches its Long-time trip threshold, dropping non-critical loads to keep the facility online.

Lifecycle Maintenance and Conceptual Trade-Offs

Initial Procurement vs. Lifecycle Maintenance

Specifying electrical infrastructure requires balancing upfront capital expenditure against long-term operational stability. Intelligent and high-capacity units carry a higher initial procurement cost compared to standard thermal-magnetic devices. This upfront premium is quickly offset by long-term savings derived from reduced maintenance intervals and avoided downtime. Advanced telemetry allows facilities to transition from reactive maintenance to condition-based maintenance, servicing equipment only when data indicates degradation.

Evaluating this trade-off requires analyzing the availability of spare parts and the complexity of servicing different architectures. Large air-insulated units require specialized technicians to perform contact resistance testing, mechanism lubrication, and primary injection testing. Primary injection testing involves pushing thousands of amps through the device to verify the physical operation of the CTs, trip unit, and mechanical latch. Conversely, molded case units are typically sealed and treated as non-serviceable replacement items. Facilities must align their procurement strategy with their internal maintenance capabilities and the critical nature of the loads being protected.

Space Constraints vs. Thermal Dissipation Requirements

Physical footprint dictates switchboard design. Engineers face a constant trade-off between specifying compact footprints and managing the resulting thermal density. Molded case units offer high interrupting capacities in very small form factors. Packing dozens of these units into a single distribution board generates significant heat due to the internal resistance of the bimetallic strips and contact junctions. If this thermal energy is not properly managed, the ambient temperature inside the panel rises, potentially causing nuisance tripping or degrading the insulation of internal wiring.

Larger air-insulated units require substantial physical space within the switchgear. They demand adequate ventilation, spacing, and specific arc clearance zones to safely exhaust the ionized gases generated during fault clearing. Engineers must calculate the total heat dissipation of all active components and design the switchboard with appropriate ventilation louvers, cooling fans, or expanded busbar spacing to maintain safe operating temperatures. Failure to respect the manufacturer's required arc exhaust clearance zones can result in a phase-to-ground fault when the conductive plasma hits the metal enclosure during a trip event.

Implementation Risks and Mitigation Strategies

Selective Coordination Failures

Selective coordination ensures that only the protection device immediately upstream of a fault opens, leaving the rest of the electrical network energized. A coordination failure occurs when a downstream fault trips an upstream main device. This causes widespread power loss across the entire facility, shutting down unaffected production lines and critical systems. This risk is particularly high when mixing different brands or generations of protection devices without proper analysis, as trip curves vary wildly between manufacturers.

Mitigating this risk mandates a comprehensive coordination study using Time-Current Curve (TCC) analysis before procurement. Engineers overlay the trip curves of all devices in the circuit path on a logarithmic graph. They adjust the LSIG settings on electronic trip units to ensure clear separation between the curves at all fault current levels. This rigorous analysis guarantees that the downstream device clears the fault before the upstream device reaches its trip threshold. Field technicians must strictly adhere to the coordination study document during commissioning, verifying every dial and digital setting matches the engineered design.

Retrofitting Legacy Switchgear

Modernizing aging electrical infrastructure presents significant physical and electrical compatibility challenges. Replacing obsolete units in existing panels often reveals mismatched busbar alignments, different physical dimensions, and incompatible control wiring. Attempting to force a modern unit into a legacy chassis without proper engineering can compromise the mechanical integrity of the switchboard and reduce the fault withstand rating. Drilling new holes in existing copper busbars reduces their cross-sectional area, creating dangerous hot spots.

Mitigation relies on utilizing manufacturer-specific retrofit kits. These kits provide custom copper bus connections and mounting brackets designed to adapt modern units to legacy panel dimensions. Engineers must verify busbar alignments and ensure adequate clearance for arc exhaust. They must ensure new electronic trip units are compatible with legacy control wiring, analog circuits, and existing ground fault relay schemes to maintain full system functionality. A successful retrofit requires a detailed site survey to measure existing busbar depths, phase spacing, and control voltage availability before ordering the replacement hardware.

Conclusion

Circuit breaker selection remains a strict engineering exercise that balances fault capacity, load characteristics, and safety compliance to properly manage electrical energy sources. Haphazard specification leads to compromised safety, nuisance outages, and wasted capital. By applying a rigorous technical framework, facilities can deploy protection architectures that isolate faults instantly while maintaining continuous power to critical operations.

The decision matrix follows a clear hierarchy based on application demands. Miniature units serve terminal loads and analog circuits. Molded case architectures provide adjustable mid-tier distribution for commercial and industrial panels. Heavy-duty air-insulated units act as the primary defense for main incomers and massive power sources. Intelligent residual current devices protect sensitive, data-driven environments where micro-ampere leakage detection is mandatory.

To ensure optimal protection and operational reliability, facility managers should take the following actions:

1. Engage a certified power systems engineer to perform an updated short-circuit and coordination study based on current utility fault levels.

2. Request detailed technical submittals from shortlisted manufacturers, specifically comparing ETU adjustability and communication protocols.

3. Audit existing legacy switchgear to identify obsolete protection devices and evaluate the feasibility of cradle-in-cradle retrofit solutions.

4. Implement a condition-based maintenance schedule utilizing the telemetry data provided by modern intelligent protection units.

5. Verify all arc flash mitigation features, including ZSI and ERMS, are properly wired, tested, and documented in the facility safety plan.




FAQ

Q: What is the fundamental function of a circuit breaker in an electrical network?

A: It acts as a critical safety device designed to automatically interrupt a closed-loop circuit. It isolates the source of electricity when a fault, short-circuit, or severe overload is detected, preventing equipment damage, melted busbars, and electrical fires.

Q: What is the difference between an MCCB and an ACB?

A: They differ primarily in current rating, physical size, and maintenance style. MCCBs are molded, compact, and typically cover up to 1600A. ACBs are larger, utilize draw-out designs for heavy maintenance, handle up to 6300A, and are located at the main electrical service entrance.

Q: When should I specify a Leakage Molded Case Circuit Breaker over a standard MCCB?

A: Specify a leakage variant when you need integrated earth leakage protection to prevent equipment damage and personnel hazards. This integrated approach saves panel space and wiring complexity by eliminating the need for separate external ground fault relays and current transformers.

Q: How does an Intelligent Residual Current Circuit Breaker improve facility maintenance?

A: It improves maintenance by providing continuous digital telemetry. Facility managers can monitor micro-ampere leakage current trends over time, allowing for predictive maintenance and insulation repairs before a hard trip disrupts facility operations.

Q: What is selective coordination in circuit breaker applications?

A: Selective coordination is the localization of a fault condition to restrict outages only to the equipment affected. It is achieved by staggering the trip times and current thresholds of upstream and downstream devices, ensuring the breaker closest to the fault trips first.

Q: Can a Universal Air Circuit Breaker be retrofitted into existing switchgear?

A: Yes. Engineers use direct replacement or cradle-in-cradle retrofit solutions. These custom kits allow modern trip units and mechanisms to be installed into legacy switchgear, upgrading system safety without the expense of replacing the entire switchboard.

Q: What does the kAIC rating on a circuit breaker mean?

A: It stands for Kilo-Ampere Interrupting Capacity. It defines the maximum fault current the breaker can safely clear without sustaining mechanical damage, welding its contacts, or failing to break the electrical circuit loop.
